Description

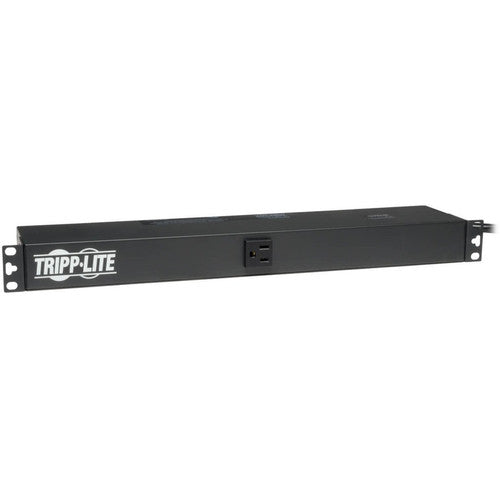

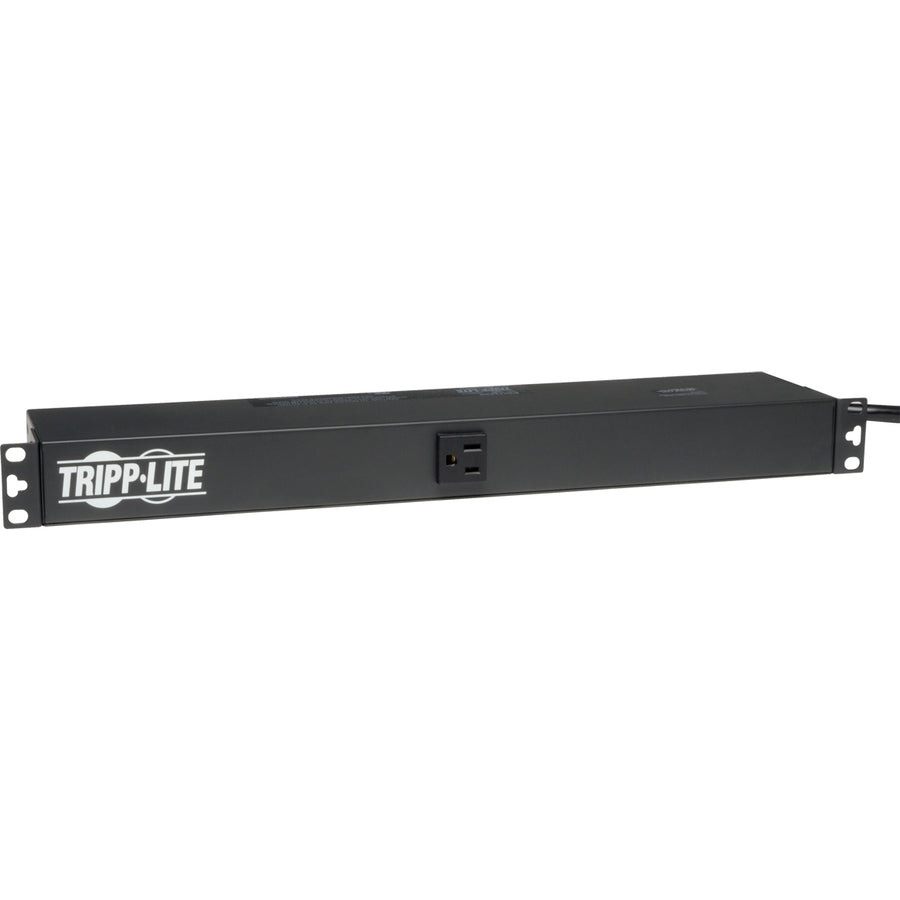

Tripp Lite's PDU1215 AC power distribution unit offers 15 amp, 120 volt capacity in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for wallmount, under-counter or 1U/0U rackmount installation. Uses only 1 rack space (1U) when installed in any 19 inch rack, with the potential for 0U mounting in the cable management area of most rack enclosures. Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes. Attractive housing with all rear-facing outlets measures only 4.5 inches in depth. Unfiltered electrical pass-through without a power switch makes PDU1215 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Includes 12 rear-facing NEMA5-15R outlets and one front-facing, 15-ft. AC power cord, 15 amp circuit breaker, grounding lug and rugged all-metal case design.PLUG/OUTLETS - Input: NEMA 5-15P/Output: 13 NEMA5-15R (12 rear-facing, one front-facing)ELECTRICAL - 120V AC, 50/60Hz, 15A (Requires NEMA 5-15R wall receptacle)FORMAT - Supports 19 in. rackmount (1U/0U), wallmount, under-counter and more

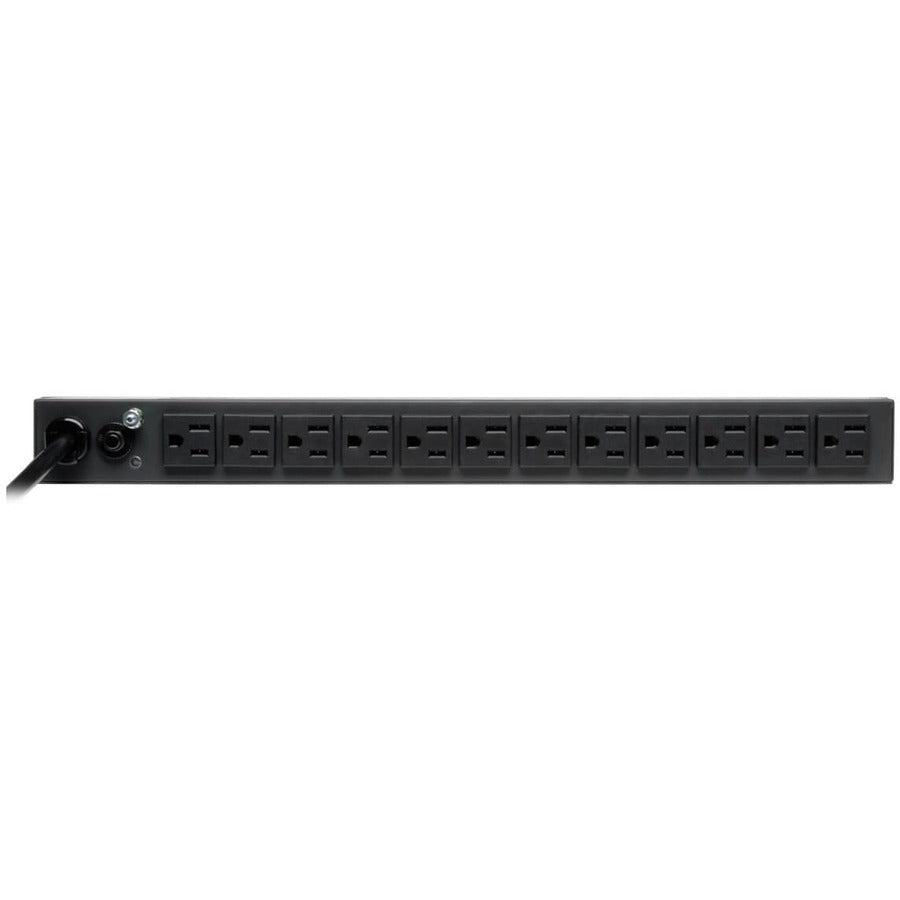

- 13 NEMA 5-15R outlets (1 front / 12 rear)
- Switchless design prevents accidental shut-off
- 1U horizontal rackmount installation
- NEMA 5-15P input; 15 ft. / 4.5m line cord
- Basic single phase 15A 120V PDU
- Environmental Certification : RoHS
- Receptacle Type : NEMA 5-15R
- Receptacle Detail : 13 x NEMA 5-15R
- PDU Type : Basic
- Input Voltage : 120 V AC
- Limited Warranty : 5 Year
- Plug/Connector Detail : 1 x NEMA 5-15P
- Manufacturer Website Address : http://www.tripplite.com
- Package Contents :
- PDU1215 PDU Basic 120V 15A 13 Outlet
- PDU1215 Rackmount Power Strip
- Warranty information
- Instruction manual
- Plug/Connector Type : NEMA 5-15P
- Product Type : PDU
- Mount Type : Rack-mountable
- Manufacturer : Tripp Lite by Eaton
- Product Model : PDU1215
- Output Voltage : 120 V AC
- Country of Origin : China
- Rack Height : 1U
- Phase : Single Phase
- Environmentally Friendly : Yes
- Power Rating (Watt) : 1.80 kW
- Network (RJ-45) : Yes
- Mounting Orientation : Horizontal
- Input Current : 15 A
