Description
Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- Toolless button mount and bolt-down bracket installation hardware included
- 28 NEMA 5-15/20R outlets

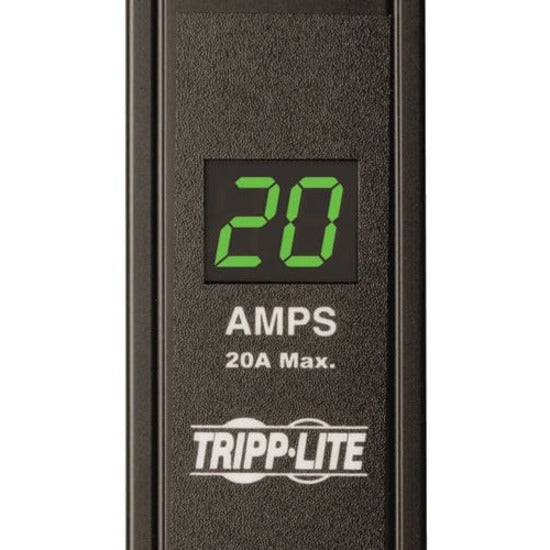

- Two-digit current meter reports output current in amps

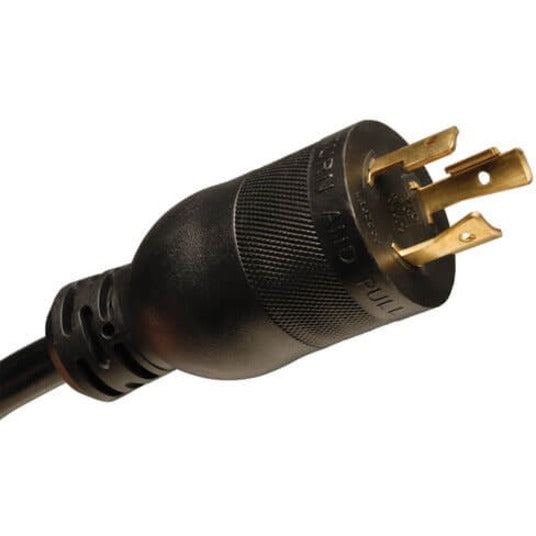

- Attached 15ft / 4.6m cord with NEMA L5-20P plug and 5-20P adapter
- Metered single phase 120V 20A 0U 60in / 152cm vertical rackmount PDU
- Receptacle Type : NEMA 5-15/20R
- Receptacle Detail : 28 x NEMA 5-15/20R
- Environmentally Friendly : Yes
- Power Rating (Watt) : 2.40 kW
- Input Voltage : 120 V AC
- Limited Warranty : 2 Year

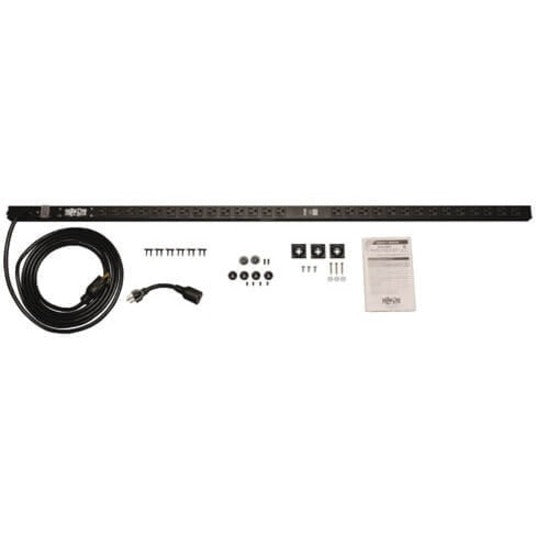

- Package Contents :
- PDUMV20 PDU Metered 120V 20A 28 Outlet
- (1) L5-20P to 5-20P plug adapter
- Mounting hardware
- Six protective outlet covers
- Instruction manual with warranty information
- Manufacturer Website Address : http://www.tripplite.com
- Plug/Connector Type : NEMA L5-20P
- Product Type : PDU
- Mount Type : Rack-mountable
- Protection Type : Overload Protection
- Manufacturer : Tripp Lite by Eaton
- Product Model : PDUMV20
- Output Voltage : 120 V AC
- Mounting Orientation : Vertical
- Country of Origin : China
