Description

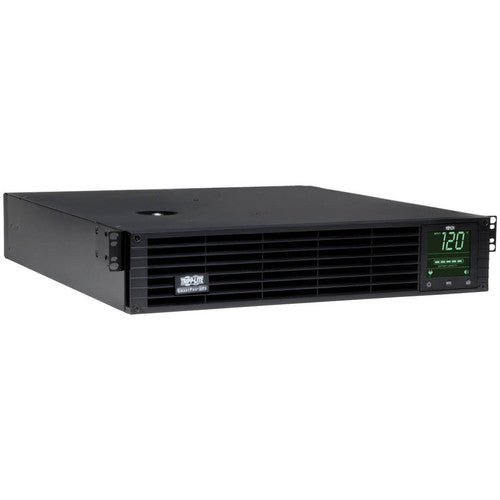

Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 98% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB port, DB9 serial port and pre-installed WEBCARDLX network management interface card.
The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. PowerAlert UPS monitoring software is available for free download. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.
- NEMA L5-30P input, 8 NEMA 5-15/20R & 1 L5-30R outlets
- 2 independently switchable output load banks
- Hot-swap batteries, 98% efficiency, Sine wave output
- USB, RS232, EPO and Pre-installed WEBCARDLX interface
- Interactive LCD provides UPS status information and advanced configuration options
- 120V nominal output during brownouts to 83V and overvoltages to 145V
- 3kVA / 3000VA / 2250W line interactive 2U rack/tower UPS
- Manufacturer Website Address : http://www.tripplite.com
- Load Capacity : 3 kVA/2.25 kW
- Receptacle Type : NEMA L5-30R,NEMA 5-15/20R
- Receptacle Detail : 1 x NEMA L5-30R,8 x NEMA 5-15/20R
- Product Series : SmartPro
- Input Voltage : 120 V AC
- Transfer Time : 5 ms
- Typical Battery Recharge Time : 4.50 Hour
- Limited Warranty : 3 Year
- Form Factor : Rack/Tower
- Backup/Run Time (Full Load) : 3.50 Minute
- Package Contents :
- SMART3000RM2UN UPS System with Pre-installed WEBCARDLX
- PowerAlert Software CD
- USB Cable
- Serial Cable
- EPO Cable
- 4 Post Installation Kit
- Instruction Manual
- Plug/Connector Type : NEMA L5-30P
- Product Type : Line-interactive UPS
- Manufacturer : Tripp Lite by Eaton
- Product Model : SMART3000RM2UN
- Output Voltage : 120 V AC
- Country of Origin : China
- Rack Height : 2U
- Hot Swappable : Yes
- Backup/Run Time (Half Load) : 10 Minute
- Software Included : PowerAlert Software
- Network Management : SNMP Manageable
- Serial Port : Yes
- USB : Yes
