Description
Ideal for Protection of Mission-Critical Equipment

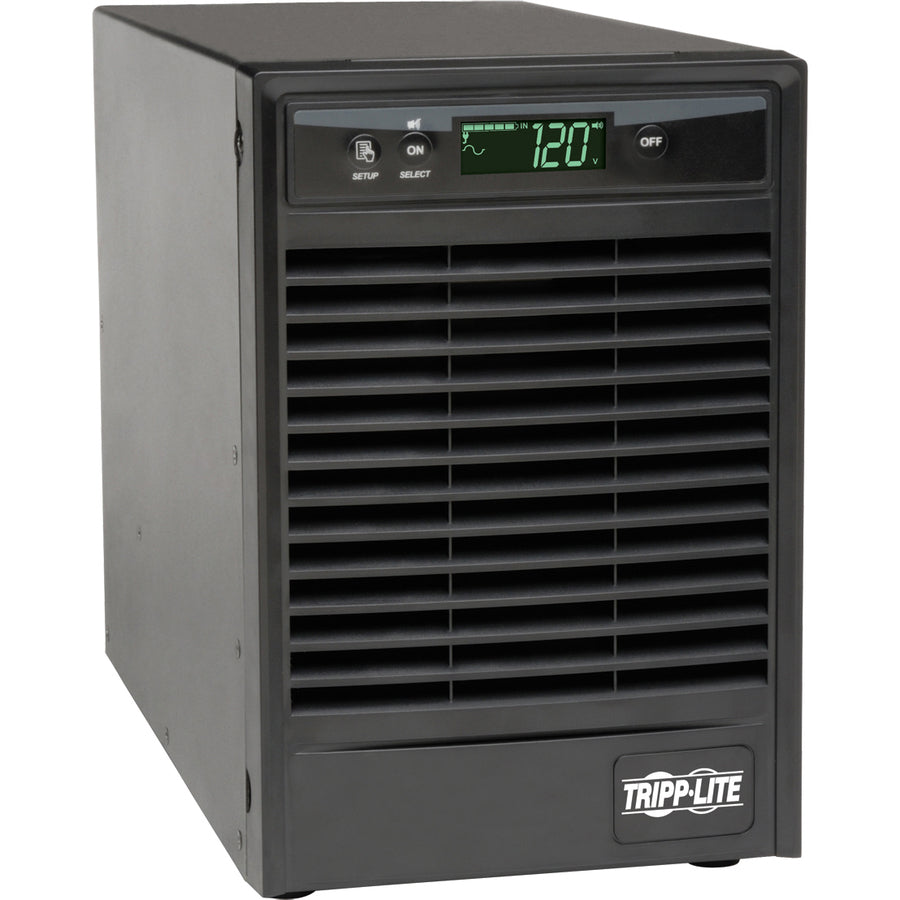

The SU1000XLCD provides true on-line operation, reliable battery backup and comprehensive power management capability in a compact tower form factor. Featuring a 1000VA/900W capacity, 6 5-15R outlets, a 10-ft. cord with standard 5-15P plug, USB/DB9 ports and a slot for an optional network management accessory card, the SU1000XLCD offers a complete power protection solution for small- to medium-size servers, storage devices, telecom systems and other mission-critical equipment.
True On-Line Operation with Pure Sine Wave Output and Zero Transfer Time
The SU1000XLCD provides the highest level of protection available for mission-critical equipment. It actively converts raw incoming AC power to DC, then re-converts it back to regulated, filtered AC output with a pure sine wave, completely isolating connected components from all power problems. Zero transfer time between AC and battery operation maintains continuous output and further protects connected equipment from the disruptive effects of blackouts and severe low-voltage conditions. Sine wave output guarantees compatibility with all equipment types.
Individually Controllable Outlets
The SU1000XLCD includes 2 single-outlet load banks that are individually controllable via a software interface for remote reboot of locked-up equipment or load shedding to maximize battery backup time for mission-critical equipment.
Reliable, Expandable Battery Backup
UPS battery backup keeps connected equipment operational through short power failures, and provides time to save data and perform an orderly system shutdown in case of a prolonged blackout. The SU1000XLCD features a large internal battery set that provides 12.8 minutes of battery support for a half load (450 watts) and 3.8 minutes for a full load (900 watts). Intelligent battery management system extends battery life. During normal operation, incoming utility power keeps the UPS battery fully charged so that backup power will always be available if needed. For mission-critical applications demanding continuous uptime, the fully scalable SU1000XLCD can provide expandable runtime with optional external battery packs (Tripp Lite model BP24V15RT2U, BP24V28-2U or BP24V70-3U), sold separately.
High Power Factor and Highly Efficient Operation Reduces BTU Output
The SU1000XLCD features a high 0.9 power factor and an optional, highly efficient economy mode setting that can significantly reduce a facility's energy costs. In economy mode, the UPS operates with 96% efficiency, minimizing heat output, reducing cooling requirements and consuming less electricity.
AC Line and Tel/Ethernet Surge Suppression
A sudden power surge or spike can damage or destroy electronic components and wipe out irreplaceable data. The SU1000XLCD features a 570-joule surge suppression rating to protect connected components and data from the harmful effects of power surges. One set of tel/Ethernet (RJ45) jacks provides surge protection for a standard phone or network connection (cable not included).
EMI/RFI Line Noise Filtering
Various electrical and radio sources can cause disruptive interference on the AC line. This line noise is a common cause of incremental hardware damage, data corruption and audio/video performance problems.

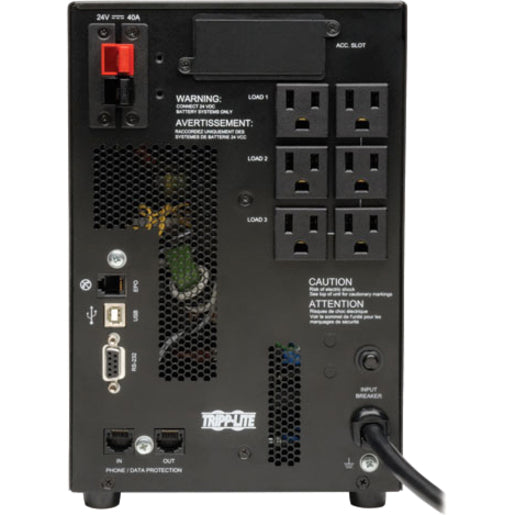

- NEMA 5-15P input; 6 5-15R outlets
- 2 independently switched load banks
- USB, RS232 & EPO ports, SNMPWEBCARD option
- Expandable runtime, Hot-swappable batteries
- Interactive LCD with 10 selectable screens of UPS and site power data
- 1000VA / 1kVA / 900 watt on-line double-conversion tower UPS
- 100/110/120/127V 50/60Hz output, high efficiency economy mode option
- Receptacle Type : NEMA 5-15R
- Receptacle Detail : 6 x NEMA 5-15R
- Input Voltage : 110 V AC
- Transfer Time : 0 ns
- Limited Warranty : 2 Year
- Typical Battery Recharge Time : 3 Hour
- Form Factor : Tower
- Package Contents :
- Smartonline SU1000XLCD 1000VA Tower UPS
- Poweralert Software CD
- Owner's Manual with Warranty Information
- EPO (Emergency Power Off) Cable
- USB Cable
- DB9 Cable
- Manufacturer Website Address : http://www.tripplite.com
- Backup/Run Time (Full Load) : 3.80 Minute
- Plug/Connector Type : NEMA 5-15P
- Product Type : Double Conversion Online UPS
- Load Capacity : 1 kVA/900 W
- Manufacturer : Tripp Lite by Eaton
- Product Model : SU1000XLCD
- Hot Swappable : Yes
- Output Voltage : 127 V AC,120 V AC,110 V AC
- Backup/Run Time (Half Load) : 12.80 Minute
- Country of Origin : China
- Product Line : SmartOnline
- Software Included : PowerAlert Software
- Network Management : SNMP Manageable
- USB : Yes
- Serial Port : Yes
