Description

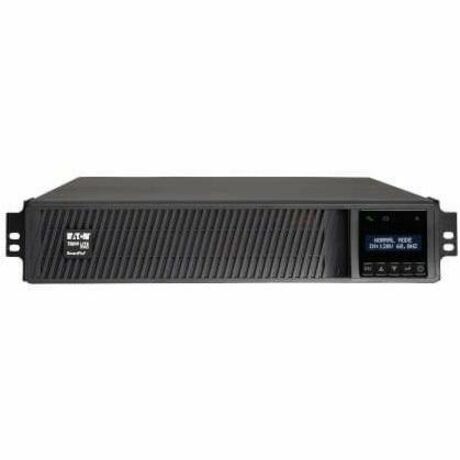

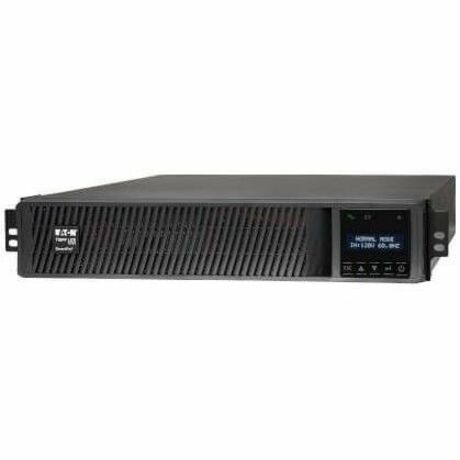

This rack-mount line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your valuable IT equipment or destroy data. The SMART1500RMXL2U is ideal power management for high-end in-rack networking equipment, including servers, VoIP phones, data storage and PoE switches. Unity power factor ensures the most watts possible at each power rating, so you can connect more equipment.
Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Switchover from line to battery power happens within milliseconds to maintain continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP48VRM2U, sold separately).
Optional LX Platform Network Management Card Allows Remote Access 24/7
The WEBCARDLXE network interface (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.
NEMA 5-15R Outlets Protect Your Connected Components

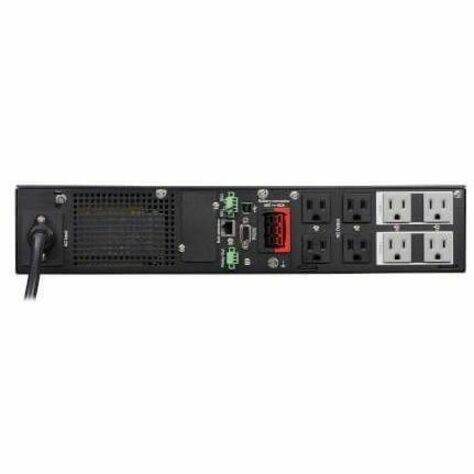

Eight managed 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four outlets are grouped into two programmable load banks that let you shed non-critical loads to extend runtime for critical loads. Front and rear cooling fans help protect equipment from overheating.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts. The SMART1500RMXL2U maintains regulated 120V nominal output during brownouts and overvoltages from 80V to 151V while keeping the battery fully charged and ready to take over in case of power failure.
Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.
ENERGY STAR-Certified to Help You Save Money and Protect the Environment
By meeting strict U.S. Department of Energy and U.S. Environmental Protection Agency requirements, this ENERGY STAR 2.0 UPS system provides high operational efficiency to signal a reduction in BTU emissions, save on utility and cooling costs and help protect the environment.
- $250,000 Ultimate Lifetime Insurance
- 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
- 2-line front-panel LCD with 10 selectable screens reports detailed UPS and site power info
- ENERGY STAR 2.0-certified to save electricity, lower costs and protect the environment
- Unity power factor ensures maximum power possible at each power rating
- Protects equipment against blackouts, brownouts, transient surges and line noise
- Keeps equipment running during outages to allow time for file saves and safe shutdown
- Backup/Run Time (Full Load) : 5.10 Minute
- Load Capacity : 1.44 kVA/1.44 kW
- Backup/Run Time (Half Load) : 15.10 Minute
- Input Voltage : 120 V AC
- Alarm : UPS StartUp,Remote Shutdown,Overload,Low Battery,Power Failure
- Output Voltage : 100 V AC,110 V AC,120 V AC,125 V AC
- Status Indicators :
- UPS status (Solid Green)
- Battery Mode (Solid Orange)
- Battery Low Warning (Flashing Orange)
- Fault/Alarm (Solid Red)
- Phase : Single Phase
- DC System Voltage : 48 V DC
- Sound Emission (A-Weighted) : 40 dB(A)

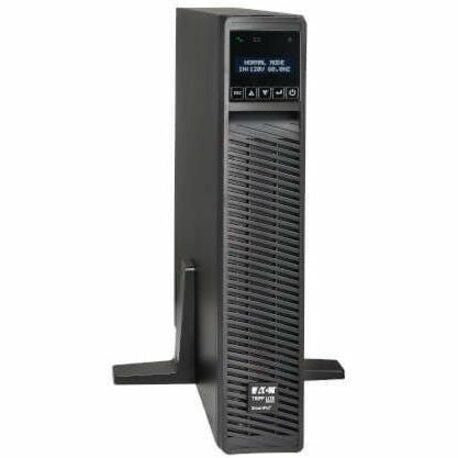

- Form Factor : Rack/Tower
- Energy Saving : Greater than 95% efficiency - GREEN UPS; Individually controllable load banks
- Battery Characteristics : Valve-regulated
- Output Frequency : 60 Hz
- Storage Temperature : 5°F (-15°C) - 122°F (50°C)
- Output Power Factor : 1
- EPO Port : Yes
- Additional Warranty Information : 3 year with registration. Note: Registration is required for 3-year warranty.
- Waveform Type : Sine Wave
- Input Frequency : 60 Hz
- Replaceable Battery : Yes
- AVR : Yes
- Receptacle Type : NEMA 5-15R
- Receptacle Detail : 8 x NEMA 5-15R
- Transfer Time : 4 ms
- Manufacturer Website Address : http://www.tripplite.com
- Battery Life : 6 Year
- Plug/Connector Type : NEMA 5-15P
- Product Type : Line-interactive UPS
- Battery Chemistry : Lead Acid
- Manufacturer : Tripp Lite by Eaton
- Hot Swappable : Yes
- Rack Height : 2U
- Product Line : SmartPro
- Network Management : SNMP Manageable
- Maximum Operating Temperature : 104°F (40°C)
- USB : Yes
- Package Contents :
- SMART1500RMXL2UA UPS System
- PowerAlert Software with USB
- Serial & EPO Cabling
- 4 Post Installation Kit
- Owner's Manual
- Limited Warranty : 2 Year
- Typical Battery Recharge Time : 4.50 Hour
- Country of Origin : Taiwan
- Serial Port : Yes
- Thermal Dissipation : 277.90 BTU/h
- Product Model : SMART1500RMXL2UA
- Environmentally Friendly : Yes
- Product Color : Black
- Surge Energy Rating : 570 J
