Description
5000VA line interactive UPS system for server, network and telecommunications equipment. 5kVA UPS with internal batteries installs in only 3 rack spaces with a depth of only 635mm / 25 inches. High 98% line-power efficiency rating reduces energy consumption and BTU heat output. Expandable battery runtime with optional BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible) external battery packs. Uninterruptible Power Supply (UPS) switches to battery-derived AC output during power failures and extreme voltage variations. Line interactive Automatic Voltage Regulation (AVR) offers voltage boost during brownouts and voltage reduction during overvoltage conditions to maintain regulated 230v output over an input range of 170-282V. Supports hardwire input. Includes C19 and C13 output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support communications via USB, DB9 serial and SNMPWEBCARD slot. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all 3 network interfaces at once. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. 3-stage metered current monitoring and battery charge status LEDs. Utility power and voltage regulation LEDs. Audible alarm. Self-test. 4-post rackmount installation accessories included; 2-9USTAND tower kit and 2POSTRMKITHD two post rack mounting accessories available. Field-replaceable, hot-swappable internal batteries and external battery packs.

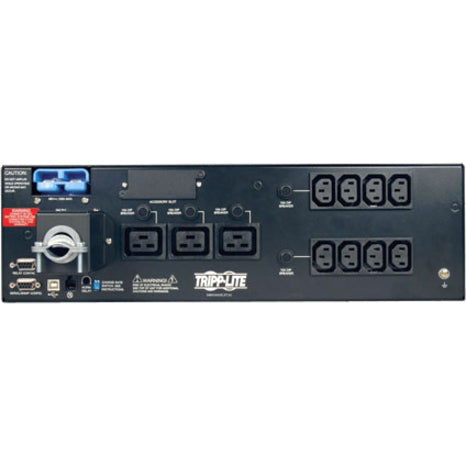

- Hardwire input; 8 C13 & 3 C19 outlets
- 3U all-in-one chassis; 98% efficiency
- USB, Serial, EPO & optional SNMP/Web card monitoring options
- 230V nominal output during brownouts to 170V and overvoltages to 282V

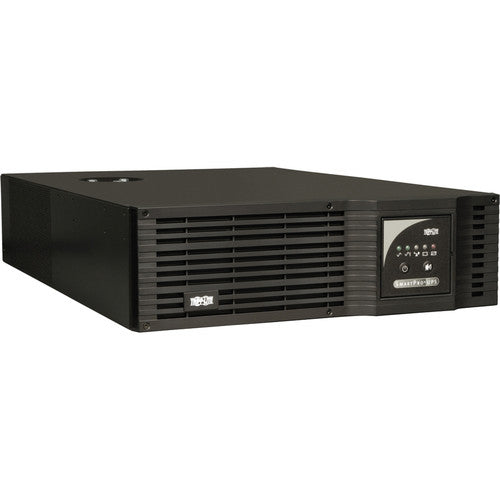

- 5kVA / 5000VA line interactive 3U rack/tower UPS; Sine wave output
- Receptacle Type : IEC 60320 C19,IEC 60320 C13
- Receptacle Detail : 3 x IEC 60320 C19,8 x IEC 60320 C13
- Input Voltage : 230 V AC
- Transfer Time : 4 ms
- Limited Warranty : 2 Year
- Typical Battery Recharge Time : 4 Hour
- Form Factor : Rack/Tower
- Package Contents :
- SMX5000XLRT3U UPS System
- PowerAlert Software and Cabling
- Mounting hardware for 4 post rackmount installation
- Warranty information
- Instruction manual
- Backup/Run Time (Full Load) : 8.50 Minute
- Plug/Connector Type : Hardwired
- Product Type : Line-interactive UPS
- Load Capacity : 5 kVA/3.75 kW
- Manufacturer : Tripp Lite by Eaton
- Hot Swappable : Yes
- Output Voltage : 220 V AC,230 V AC,240 V AC
- Backup/Run Time (Half Load) : 20 Minute
- Rack Height : 3U
- Country of Origin : China
- Product Line : SmartPro
- Software Included : PowerAlert Software
- Network Management : SNMP Manageable
- Serial Port : Yes
- USB : Yes
- Dataline Protection : RJ-11
- Manufacturer Website Address : https://tripplite.eaton.com/
