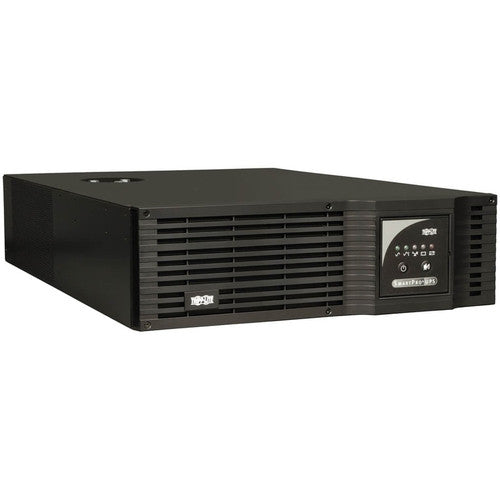

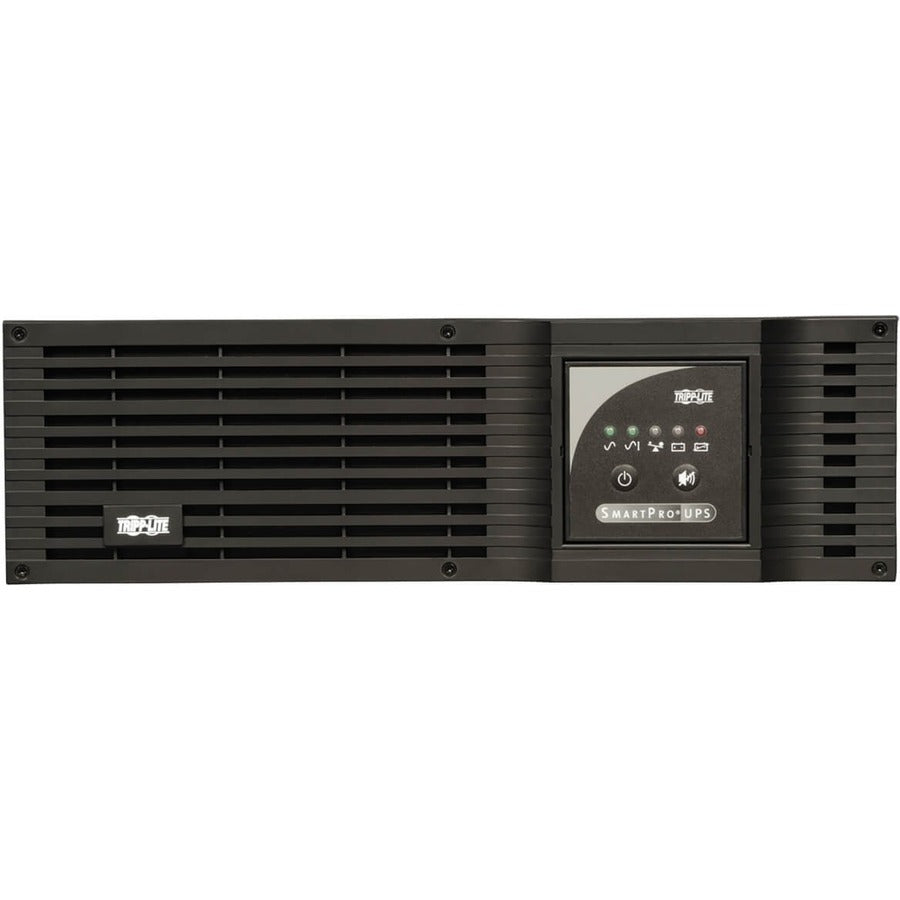

Tripp Lite SmartPro Series SMART5000XFMRXL 5000VA Tower/Rack Mountable UPS SMART5000XFMRXL

Tripp Lite 5kVA Smart RM UPS. 5000VA line-interactive UPS for server, network and telecommunications equipment. UPS with internal batteries requires 3 rack spaces installed. Accepts 208V nominal input voltage. Simultaneous 208 & 120V output. Corrects brownouts and overvoltages from 167V to 260V. Sine wave output. Maintains battery-derived AC output during blackouts and severe voltage fluctuations. Expandable runtime with optional external battery packs. 11 output receptacles. NEMA L6-30P input connection with support for user-supplied 50A or hardwire input. Network-grade AC surge and noise suppression. Network management interfaces include USB, DB9 serial and SNMPWEBCARD slot. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all network interfaces simultaneously. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. Integrated 8-bank switched PDU. 3-stage metered current monitoring and battery charge LEDs. Utility power and voltage regulation LEDs. Audible alarm. Self-test. 4-post rack mounting accessories included; 2-9USTAND and 2POSTRMKITWM accessories available. Field-replaceable, hot-swappable internal batteries and battery packs.

• 3U all-in-one chassis; 8 single-outlet switched load banks; 97% efficiency

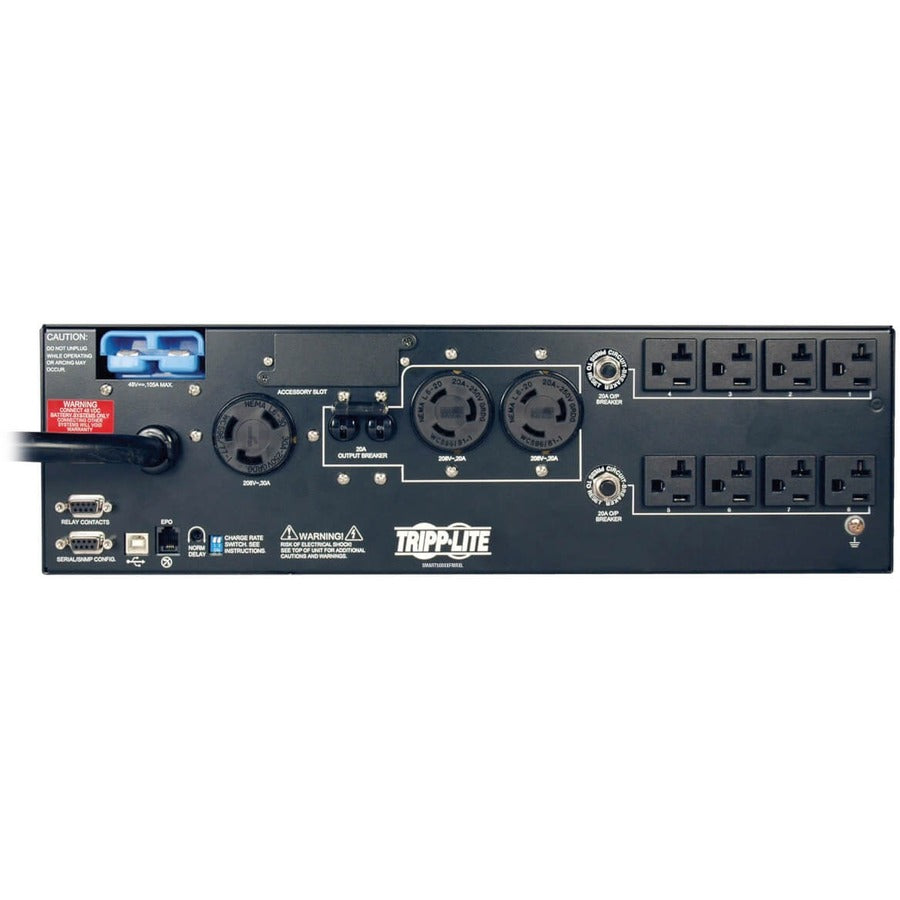

• NEMA L6-30P input; 8 NEMA 5-15/20R, 2 L6-20R & 1 L6-30R outlets
• USB, Serial, EPO & optional SNMP/Web card monitoring options
• 208 & 120V output during brownouts to 167 and overvoltages to 260V
• 5kVA / 5000VA line interactive 3U rack/tower UPS; Sine wave output

• Receptacle Type : NEMA L6-30R,NEMA L6-20R,NEMA 5-15/20R
• Receptacle Detail : 1 x NEMA L6-30R,2 x NEMA L6-20R,8 x NEMA 5-15/20R
• TAA Compliant : Yes
• Input Voltage : 208 V AC
• Transfer Time : 4 ms
• Limited Warranty : 3 Year
• Typical Battery Recharge Time : 4 Hour
• Form Factor : Tower

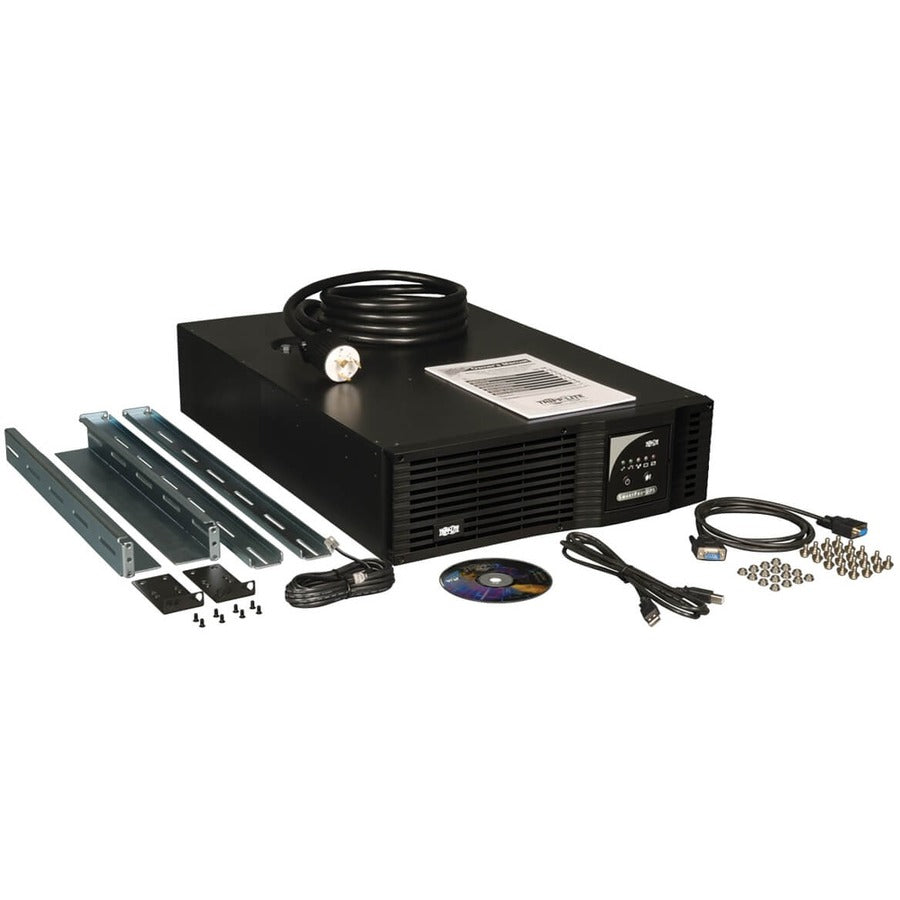

• Package Contents :
  • SmartPro Series SMART5000XFMRXL 5000VA Tower/Rack Mountable UPS
  • SMART 5000XFMRXL UPS System
  • PowerAlert Software and Cabling
  • Mounting hardware for 4-post rackmount installation
  • Warranty information
  • Instruction manual
• Backup/Run Time (Full Load) : 8.50 Minute
• Plug/Connector Type : NEMA L6-30P
• Product Type : Line-interactive UPS
• Load Capacity : 5 kVA/3.75 kW
• Battery Chemistry : Lead Acid
• Manufacturer : Tripp Lite by Eaton
• Product Model : SMART5000XFMRXL
• Hot Swappable : Yes
• Output Voltage : 208 V AC
• Backup/Run Time (Half Load) : 20 Minute
• Rack Height : 3U
• Country of Origin : China
• Product Line : SmartPro
• Software Included : PowerAlert UPS Monitoring Software
• Network Management : SNMP Manageable
• Serial Port : Yes
• Battery Characteristics : Maintenance-free
• USB : Yes
• Manufacturer Website Address : https://tripplite.eaton.com/
• Input Current : 27 A
