Description

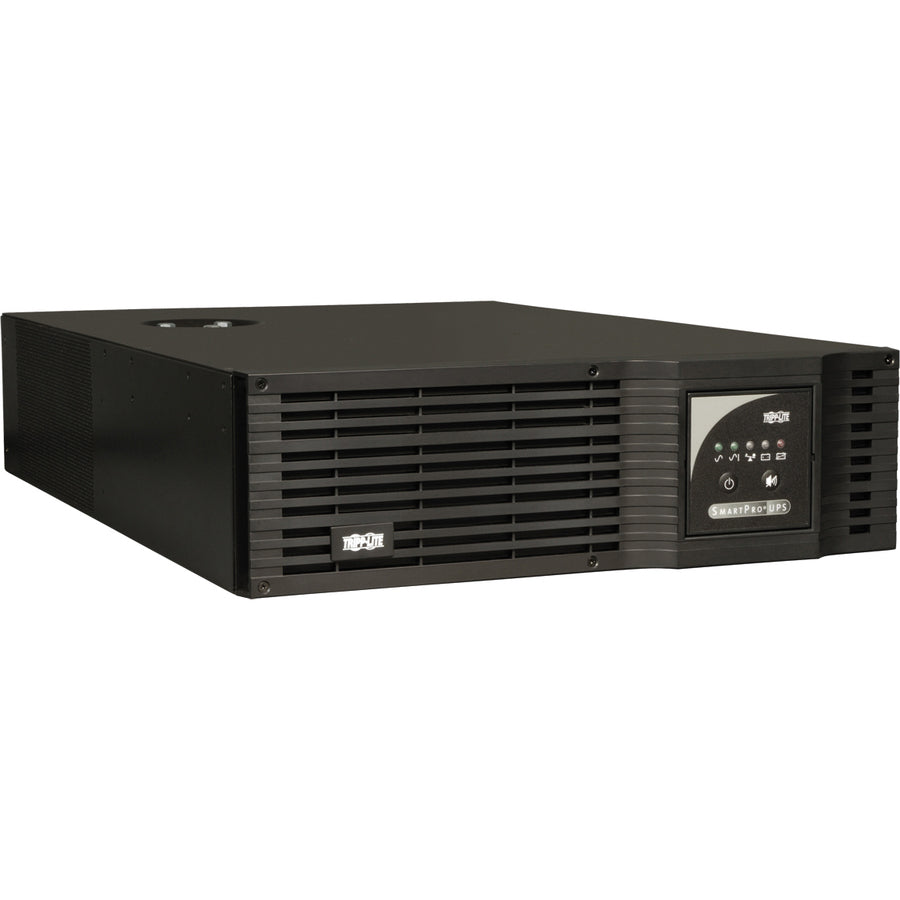

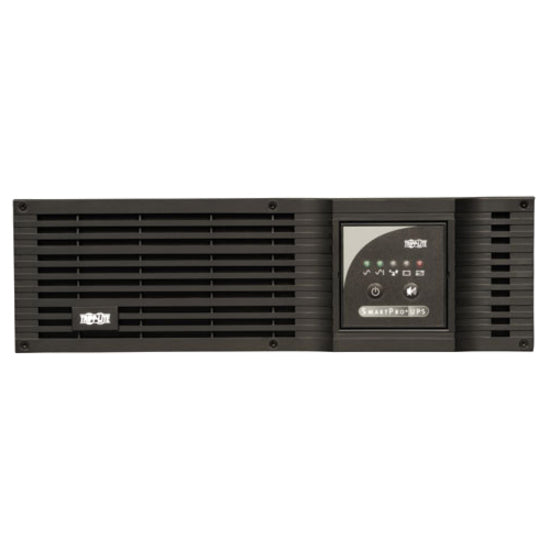

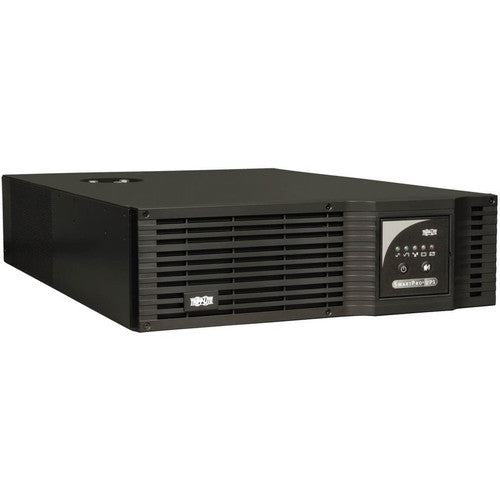

Tripp Lite's SMART5000TEL3U intelligent, line interactive UPS protects server, networking and telecommunications equipment from blackouts, voltage fluctuations and surges in a compact rackmount housing. Completely self-contained UPS system occupies only 3 rack spaces (3U) in a standard 19 inch rack, making this model one of the smallest 5kVA UPS systems available. Included accessories support mounting 4 post rack enclosures. Large capacity 5000 VA/3750 watt UPS system accepts raw AC input, adjusting output to regulated 208V levels. One pair of 120V outlets support up to 600VA monitors and other low voltage accessories. Includes slot for internal Network Management Card option. Includes USB and 2 DB9 monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data. Five outlets (two L6-20R, one L6-30R and two 5-15R) allow the connection of high current 20 and 30 amp 208V connectors and up to two 120V devices (max 600VA at 120V).
- NEMA L6-30P input; 2 NEMA 5-15R, 2 L6-20R & 1 L6-30R outlets
- 97% line-mode efficiency; Hot-swappable internal batteries
- USB, Serial, EPO & optional SNMP/Web card monitoring options
- 208V nominal output during inputs of 174-282V; Supports 600VA 120V output
- 5kVA / 5000VA line interactive 3U rack/tower UPS; Sine wave output

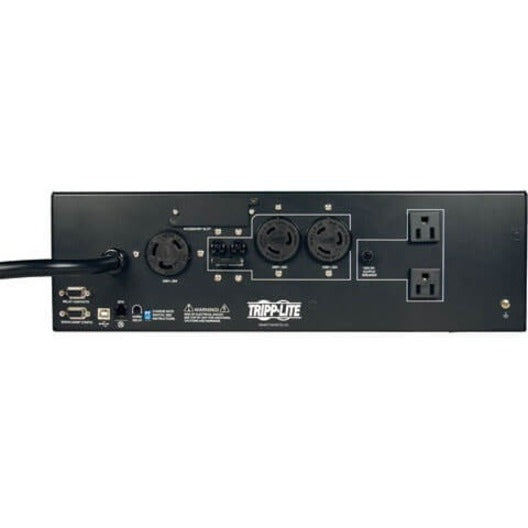

- Receptacle Type : NEMA L6-30R,NEMA L6-20R,NEMA 5-15R
- Receptacle Detail : 1 x NEMA L6-30R,2 x NEMA L6-20R,2 x NEMA 5-15R
- Input Voltage : 208 V AC
- Transfer Time : 8 ms
- Limited Warranty : 2 Year
- Typical Battery Recharge Time : 4 Hour
- Form Factor : Rack/Tower

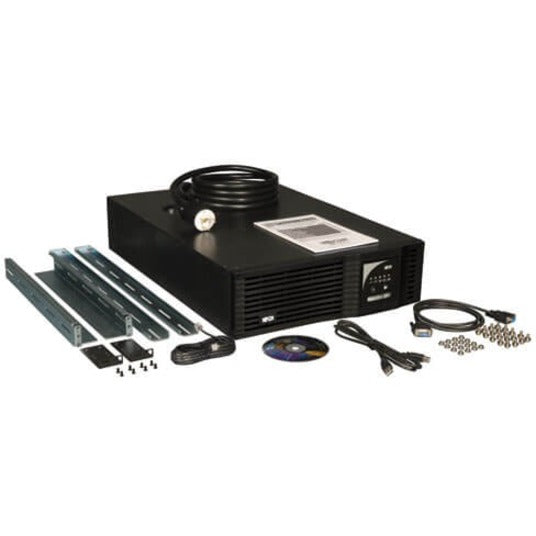

- Package Contents :
- Smart Pro 5000TEL3U UPS
- SMART5000TEL3U UPS System
- PowerAlert Software and cabling
- Mounting hardware
- Warranty information
- Instruction manual
- Backup/Run Time (Full Load) : 10 Minute
- Plug/Connector Type : NEMA L6-30P
- Product Type : Line-interactive UPS
- Load Capacity : 5 kVA/3.75 kW
- Manufacturer : Tripp Lite by Eaton
- Product Model : SMART5000TEL3U
- Hot Swappable : Yes
- Output Voltage : 208 V AC
- Backup/Run Time (Half Load) : 24 Minute
- Rack Height : 3U
- Country of Origin : Taiwan
- Product Line : SmartPro
- Software Included : PowerAlert Software
- Network Management : SNMP Manageable
- USB : Yes
- Manufacturer Website Address : https://tripplite.eaton.com/
- Input Current : 24 A
