Description
Protects Mission-Critical Rack-Mounted Equipment
- Provides fully regulated sine wave AC output for point-of-sale applications, VoIP systems and small business networks
- Audible alarm signals loss of utility power, overload, low battery and fault conditions
- 6 C13 outlets
- C14 inlet accepts user-supplied AC power cord with country-specific plug
- 350-joule surge suppression rating
Reliable Battery Backup
- Supports half load up to 11.9 min. and full load up to 3.6 min.
- Internal batteries designed for hot-swap field replacement
- 97% line-power efficiency rating saves money in energy costs
2 Load Banks with Switchable Outlets
- Can control 4 outlets remotely to reboot equipment or shed nonessential loads
Automatic Voltage Regulation (AVR)
- Maintains 230V nominal output over input range of 182V-278V without using battery power
EMI/RFI Line Noise Filtering
- Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance
Interactive LCD Screen
- Front-panel LCD signals voltage, battery and load statuses
- Supports multiple advanced user setup and operating preferences
- Rotates for easy viewing in rack-mount or tower configurations
Optional Network Management Cards
- Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX and SNMPWEBCARD
- Optional WEBCARDLX (sold separately) with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
- PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
- IP-based Auto Probe detects lost connectivity and restores service autonomously
Communications Ports
- USB and DB9 ports enable data-saving unattended shutdown when used with Tripp Lite's Power Alert software (available via free download at <li">www.tripplite.com/poweralert)
- <li">EPO port supports emergency shutdown in large facilities
Versatile Installation Options
- Hardware included for 4-post mounting in 2U of EIA-standard 19 in. rack
- Mounts on wall or 2-post rack with optional 2POSTRMKITWM accessory
- Mounts in upright tower position with optional 2-9USTAND accessory
- 11.9 min. runtime at half load; 3.6 min. at full load
- Network power management and control capability
- Interactive LCD monitoring screen
- 6 C13 outlets-4 switchable via network interface
- Corrects under- and overvoltages from 182V to 278V
- Receptacle Type : IEC 60320 C13
- Receptacle Detail : 6 x IEC 60320 C13
- Input Voltage : 220 V AC
- Transfer Time : 4 ms
- Limited Warranty : 2 Year
- Typical Battery Recharge Time : 4 Hour
- Form Factor : Rack/Tower
- Package Contents :

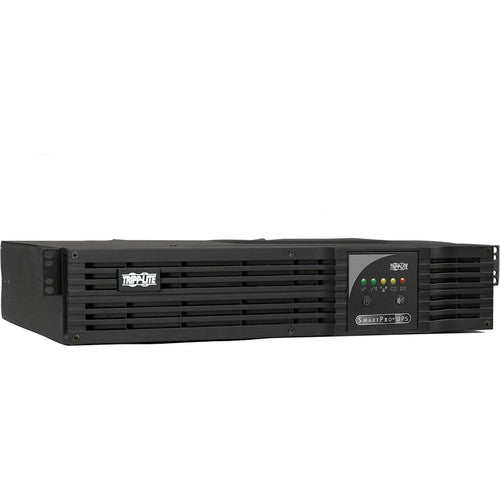

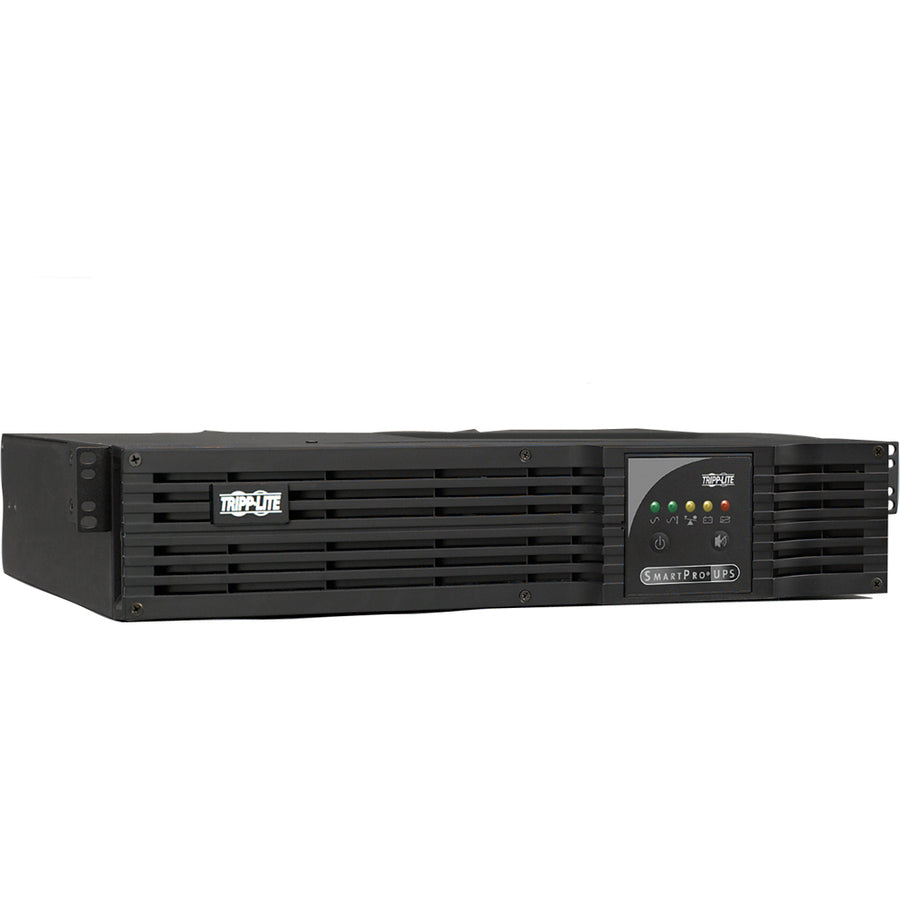

- SmartPro SMX1000RT2U Rackmountable/Tower UPS
- UPS System with 4 post rackmount hardware
- Two 1.8m IEC320-C13 to C14 load jumper cables
- Cabling for USB & DB9 monitoring and EPO switching
- PowerAlert unattended shutdown and UPS/Power monitoring software
- Warranty information
- Backup/Run Time (Full Load) : 3.60 Minute
- Plug/Connector Type : IEC 320-C14
- Product Type : Line-interactive UPS
- Load Capacity : 1 kVA/900 W
- Manufacturer : Tripp Lite by Eaton
- Product Model : SMX1000RT2U
- Hot Swappable : Yes
- Output Voltage : 230 V AC
- Backup/Run Time (Half Load) : 11.90 Minute
- Rack Height : 2U
- Country of Origin : China
- Product Line : SmartPro
- Software Included : PowerAlert Monitoring Software
- Network Management : SNMP Manageable
- Serial Port : Yes
- USB : Yes
- Manufacturer Website Address : https://tripplite.eaton.com/
