Description

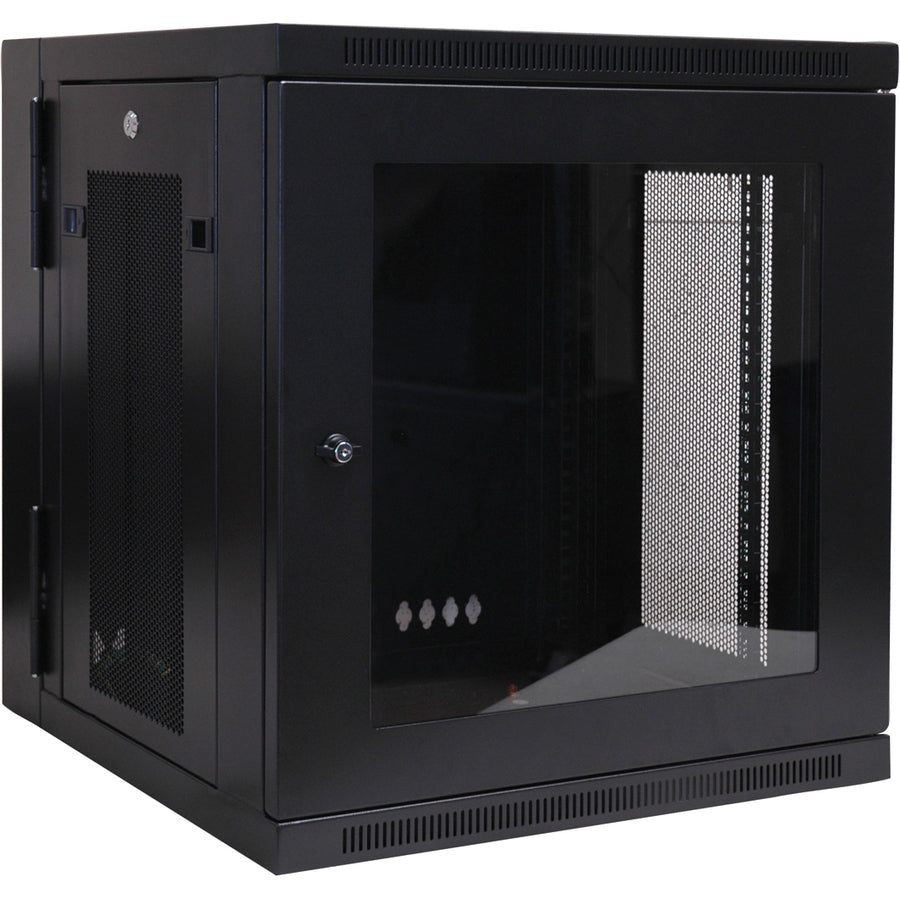

The SRW12USG SmartRack 12U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation. The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing. The SRW12USG comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels.
- Secures 12U of 19 in. rack equipment up to 20.5 in. deep
- Locking steel cabinet vented at sides, top and bottom
- Front door includes shatter-resistant clear acrylic window
- Swings away from wall on hinge for easy back-door access
- Maximum load capacity of 200 lb.
- Rack Width : 19" (482.60 mm)
- Maximum Weight Capacity : 63.50 kg
- Limited Warranty : 5 Year
- Product Material : Plexiglas
- Form Factor : Wall Mountable
- Package Contents :
- SmartRack SRW12USG Wall Mount Enclosure Rack Cabinet
- Convenient Cutouts for Cable Routing
- Product Type : Rack Cabinet
- Manufacturer : Tripp Lite by Eaton
- Product Model : SRW12USG
- Rack Height : 12U
- Country of Origin : China
- Product Line : SmartRack
- Manufacturer Website Address : https://tripplite.eaton.com/
