Description

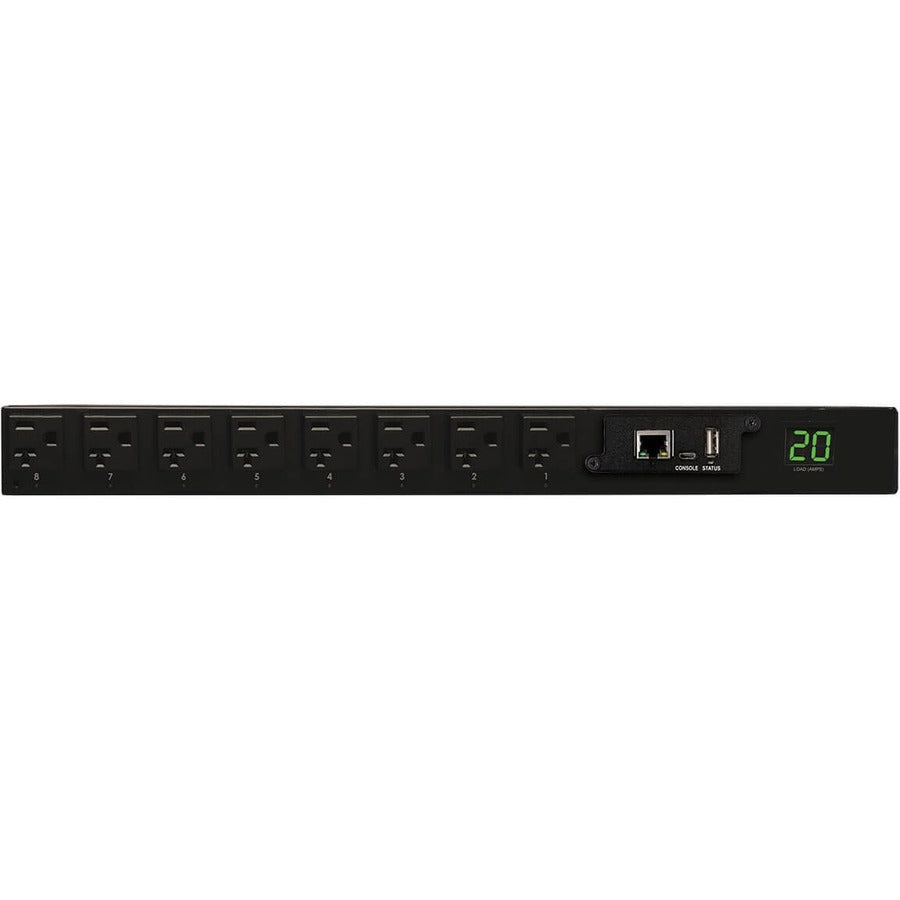

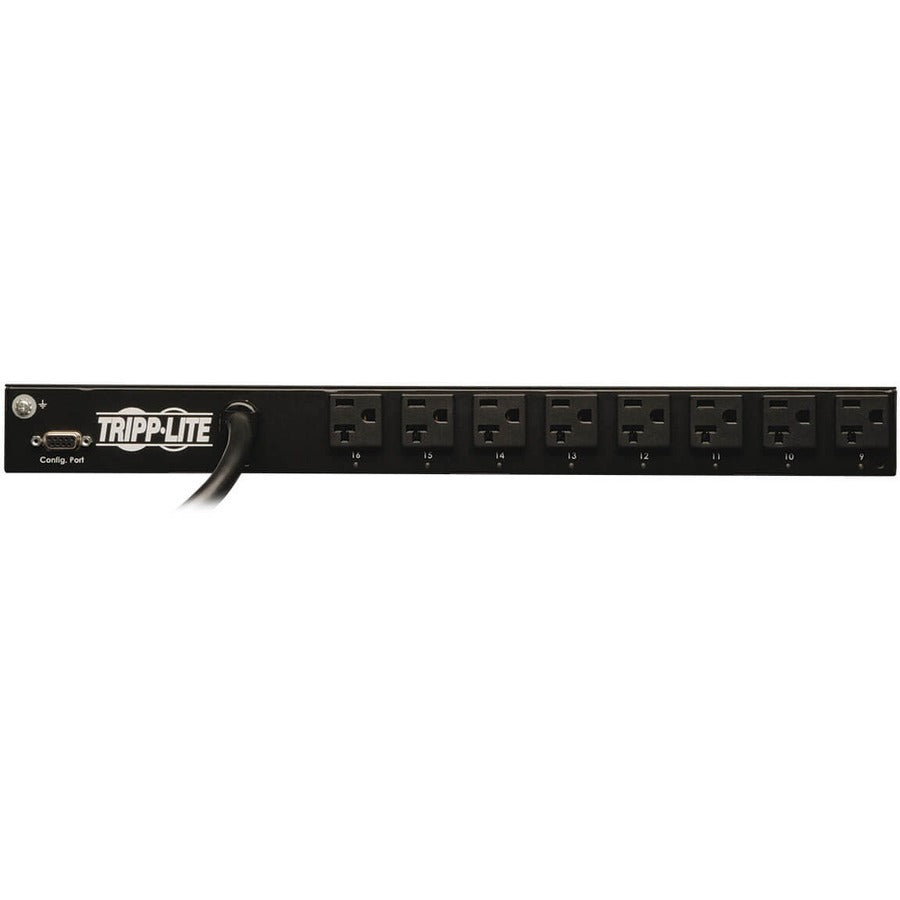

Tripp Lite single phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP, BOOTP and NTP. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps is continuously displayed locally via visual meter and remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip.
- TAA Compliant
- Temperature, humidity and contact closure monitoring options
- 16 NEMA 5-15/20R switched outlets with cord retention brackets
- Visual current meter, Reversible housing
- NEMA L5-20P input with 5-20P plug adapter, 12 ft. / 3.6m line cord
- Reports voltage, frequency & load level via ethernet interface
- Switched 20A 120V PDU, 1U horizontal rackmount format
- Receptacle Type : NEMA 5-15/20R
- Receptacle Detail : 16 x NEMA 5-15/20R
- Environmental Certification : RoHS
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- PDU Type : Switched
- Input Voltage : 120 V AC
- Product Series : Switched Metered
- Management :
Protocols:
- HTTP
- HTTPS
- SMTP
- SNMPv1
- SNMPv2
- Telnet
- FTP
- DHCP
- BOOTP
- NTP
- Limited Warranty : 2 Year
- Package Contents :
- Switched Metered PDUMH20NET 16-Outlets PDU
- L5-20P Input Power Cord
- 5-20P Plug Adapter
- Installable 1U Mounting Brackets
- PowerAlert Software
- User Manual
- Manufacturer Website Address : http://www.tripplite.com
- Plug/Connector Type : NEMA L5-20P
- Product Type : PDU
- Mount Type : Rack-mountable,Wall-mountable
- Manufacturer : Tripp Lite by Eaton
- Product Model : PDUMH20NET
- Output Voltage : 120 V AC
- Mounting Orientation : Vertical
- Rack Height : 1U
- Country of Origin : Taiwan
