Description
USB4 Cable Streams Video and Downloads Data at 40 Gbps, 8x Faster Than USB 3.0
This USB4 40Gbps cable (M/M) transmits across two bidirectional lanes, supporting speeds up to 40 Gbps, which is eight times faster than USB 3.0. Unlike previous USB generations, the USB4 40Gbps cable has the ability to allocate resources. Instead of splitting video and data equally between its two lanes, the U520-31N allows the connected display as much bandwidth as it needs, while saving all remaining bandwidth for high-speed data transfers. This makes the cable perfectly suited for 4K or 8K video streaming and editing, as well as transferring large RAW video or CAD files.
Supports DisplayPort Alternate Mode for Unidirectional 80 Gbps Video Connections
By connecting a 4K or 8K display to a host device that supports DisplayPort Alt Mode 1.4, this cable can use both high-speed lanes to transmit 4K or even 8K video at 60 Hz in one direction at 80 Gbps maximum speed. The U520-31N supports a single 8K display or dual 4K displays at 60 Hz.
Backward Compatible with Legacy USB and Thunderbolt 3 Devices
Though both connected devices must support USB4 40Gbps for the cable to reach its full potential, the U520-31N is backward compatible with USB 3.x, USB 2.0 and Thunderbolt 3 devices. It connects two USB-C devices, including MacBooks, Chromebooks, Windows laptops, smartphones, external hard drives, tablets, docking stations and wall chargers. It is compatible with all USB-C and Thunderbolt 3 devices, enabling use in existing installations while preparing for future upgrades.
PD Charging Cable Keeps the Connected Notebook, Tablet or Other Device at Capacity
The U520-31N supports Power Delivery (PD) 3.0 charging of the connected PD Charging-compliant device. It carries power output up to 20V 5A (100W), which is sufficient for fast-charging and powering your MacBook or other mobile device.

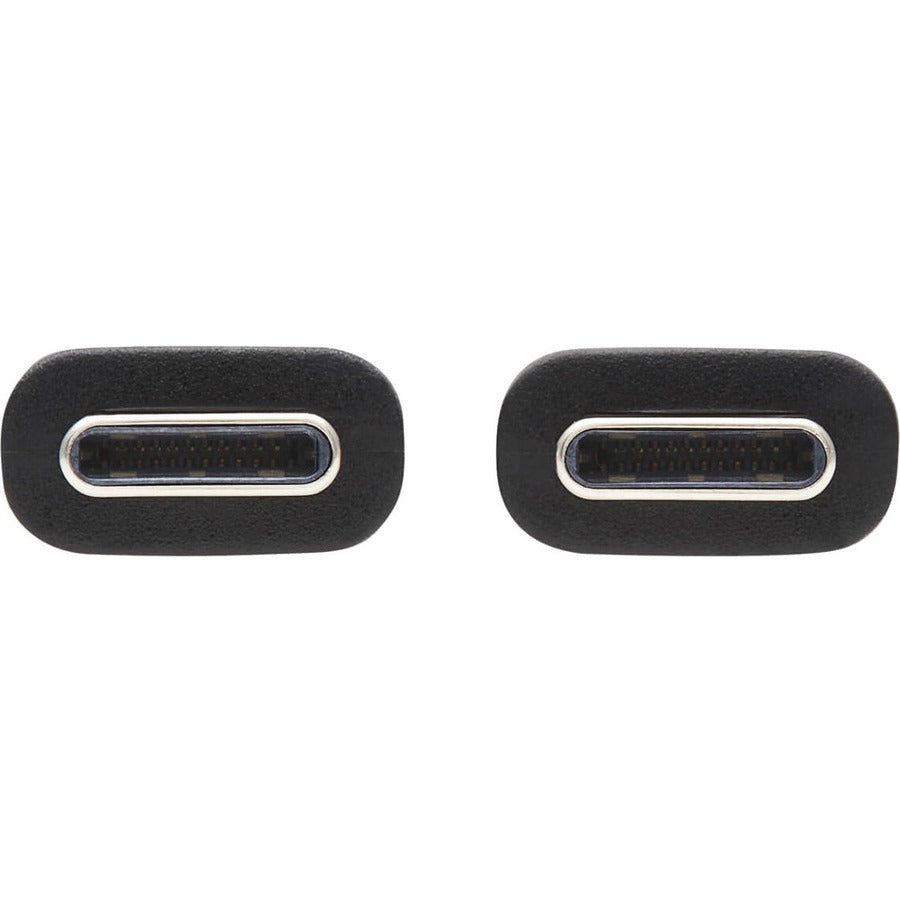

Reversible USB-C Connectors Attach in Either Direction
Unlike traditional USB cables that connect in only one direction, the reversible USB-C male connectors plug into a USB-C or Thunderbolt 3 port in either direction for an instant connection every time.
- Transferring data is not a big deal! Transfer your valuable data with ease
- Features Thunderbolt 3 cable type
- Features Charging
- Fully compatible with PCs
- Data Transfer Rate : 80 Gbit/s
- Environmental Certification : RoHS,REACH
- Cable Type : Thunderbolt 3
- Connector on First End Details : 1 x USB4 Type C Thunderbolt 3 - Male
- Environmentally Friendly : Yes
- Jacket Material : Thermoplastic Elastomer (TPE)
- Product Color : Black
- Device Supported : Notebook,Smartphone,Dock,PC,MacBook,Chromebook,External Hard Drive,Tablet,Docking Station,Wall Charger,Mobile Device
- Limited Warranty : 3 Year
- Connector Plating : Nickel
- Supported Resolution : 7680 x 4320
- Connector on Second End Details : 1 x USB4 Type C Thunderbolt 3 - Male
- Manufacturer Website Address : http://www.tripplite.com
- Connector Type on First End : USB4 Type C Thunderbolt 3 - Male
- Connector Type on Second End : USB4 Type C Thunderbolt 3 - Male
- Product Type : Data Transfer Cable
- Contact Plating : Gold
- Manufacturer : Tripp Lite by Eaton
- Product Model : U520-31N
- Cable Length : 2.6 ft
- Jacket Type : VW-1
- Features : Charging,USB- Power Delivery (USB PD),Reversible
- Country of Origin : Vietnam
