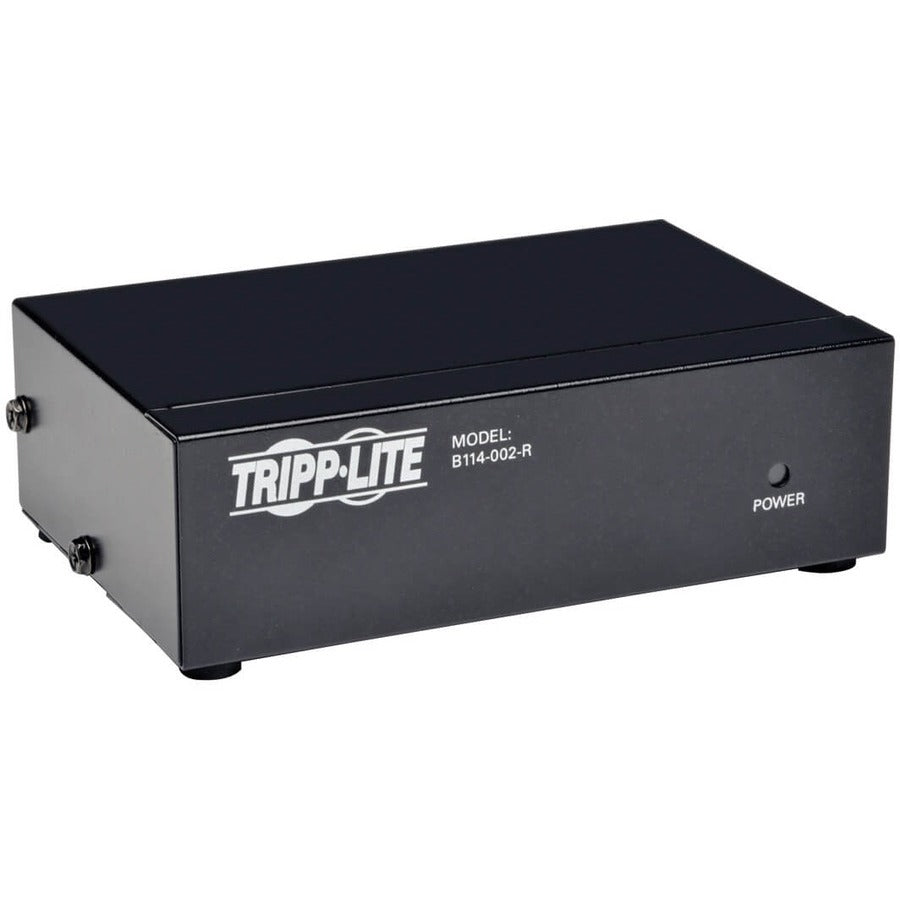

Tripp Lite VGA/SVGA 2-ports Video Splitter B114-002-R

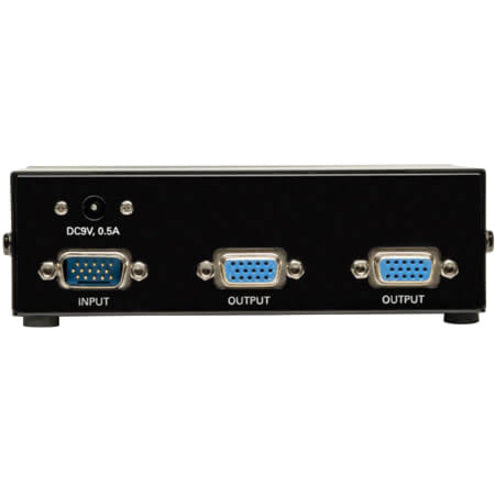

Two-port, VGA/SVGA video splitter with signal booster technology provides bandwidth support at 350MHz to let you simultaneously display video on two monitors at once. A built-in booster allows a video signal (up to 2048 x 1536 at 60Hz) to be transmitted up to 210' from the source. Two standard HD15 female ports are used to connect the monitors while the third HD15 male port is used to connect your CPU. The splitter can be located up to 25' from the connected computer and up to 185' from the connected monitors. The number of connected monitors can be expanded by cascading up to three levels of additional splitters together. Video splitter is designed for use with computers with a HD15 port.

• 350Mhz bandwidth support
• The splitter can be located up to 25 ft. from the connected computer, and up to 185 ft. from the connected monitors
• Simultaneously displays video on 2 VGA/SVGA monitors
• A built-in booster allows a video signal (up to 2048 x 1536 @ 60Hz) to be transmitted up to 210 ft. from the source

• Number of VGA Inputs : 1
• Maximum Video Resolution : 2048 x 1536
• Number of VGA Outputs : 2
• Number of Displays Supported : 2
• Maximum Operating Distance : 210 ft (64008 mm)
• Number of Input Devices Supported : 1
• Additional Warranty Information :

  1 year limited warranty

• Device Supported : Computer
• Limited Warranty : 3 Year
• Packaged Quantity : 1
• Package Contents :
  • B114-002-R VGA Splitter
  • External Power Supply with NEMA 1-15P Plug
  • User Manual
• VGA In : Yes
• Product Type : Video Switchbox
• Graphics Modes : QXGA
• Manufacturer : Tripp Lite by Eaton
• Product Model : B114-002-R
• VGA Out : Yes
• Country of Origin : China
• Manufacturer Website Address : https://tripplite.eaton.com/
