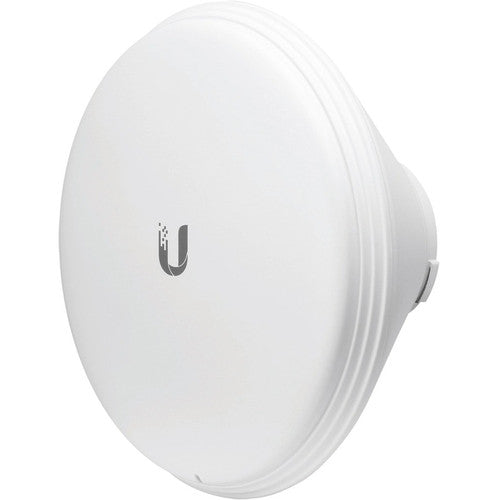

Ubiquiti 5 GHz Beamwidth Horn Antenna HORN-5-45

Ubiquiti Networks launches a new family of beamwidth isolation horn antennas.

Modular Design

With flexible sectorization for optional antenna beamwidths, the horn antennas are interchangeable and improve beam-shaping for specific deployment and environment needs. Sector horn antennas are designed to increase co-location performance without sacrificing gain.

Scalability

There are two symmetrical horn antennas:

• Horn-5-30: 30° beamwidth
• Horn-5-45: 45° beamwidth

These models offer breakthrough scalability options for wireless systems. Unique beam performance and great co-location characteristics allow for a higher density of sectors than traditional sector technology.

Enhanced Co-Location

There are two asymmetrical horn antennas:

• Horn-5-60: 60° beamwidth
• Horn-5-90: 90° beamwidth

These models have naturally attenuated side lobes and extremely low back radiation. They offer best front-to-back ratio in the industry and the lowest side lobe radiation.

Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.

Versatility

The horn antennas can be used with the following radios:

• airFiber LTU™ AF-LTU
• IsoStation IS-5AC
• IsoStation IS-M5
• PrismStation PS-5AC

Modular Design

The horn antennas come with precise radiation angles for specific beam shaping, ranging from 30° to 90°, making them suitable for a wide range of installations.

• Horn designed for improved beam shaping
• Enhanced co-location performance
• Single button release for ease of changing antennas

• Isolation Antenna Horns for airFiber® LTU and airMAX®
• Designed for Increased Co-Location Performance
• Dual-Linear Polarization

• Diameter : 6.89" (175 mm)
• Application/Usage : Wireless Bridge
• Product Line : Horn 5
• Manufacturer Website Address : http://www.ubnt.com
• Environmentally Friendly : Yes
• Compatibility : Ubiquiti Networks Devices:

  • airFiber LTU™ AF-LTU
  • IsoStation IS-5AC
  • IsoStation IS-M5
  • PrismStation PS-5AC
• Environmental Certification : REACH
• Form Factor : Pole
• Manufacturer : Ubiquiti Networks, Inc
• Product Type : Antenna
• Limited Warranty : 2 Year
• Product Model : Horn-5-45
• Operating Frequency Range : 5.15 GHz to 5.85 GHz
• Antenna Gain : 15.5 dBi

. .

• Diameter : 6.89" (175 mm)
• Application/Usage : Wireless Bridge
• Product Line : Horn 5
• Environmentally Friendly : Yes
• Form Factor : Pole
• Manufacturer : Ubiquiti Networks, Inc
• Product Type : Antenna
• Limited Warranty : 2 Year
• Product Model : Horn-5-45
• Manufacturer Website Address : http://www.ubnt.com
• Compatibility : Ubiquiti Networks Devices:

  • airFiber LTU™ AF-LTU
  • IsoStation IS-5AC
  • IsoStation IS-M5
  • PrismStation PS-5AC
• Operating Frequency Range : 5.15 GHz to 5.85 GHz
• Antenna Gain : 15.5 dBi
• Environmental Certification : REACH
