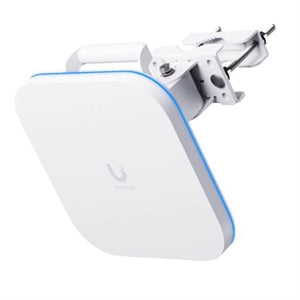

Ubiquiti E7 Campus Outdoor Access Point - E7-CAMPUS

UbiquitiSKU: E7-CAMPUS

Price:
Sale price$980.99
Stock:
Re-stocking soon

Pickup available at DeployDepot.ca

Usually ready in 24 hours

Estimate shipping

Description

Enterprise-grade indoor/outdoor access point with ‎ 10-stream‎ ‎‎ WiFi 7 performance, PRISM™ active RF filtering technology, and integrated directional antennas.


Overview
Dimensions
Device: 250 x 250 x 45.5 mm
(9.8 x 9.8 x 1.8")

Articulating mount: Ø104 x 149.4
(Ø4.1 x 5.9")
WiFi Standard
WiFi 7
Spatial Streams
10
Coverage Area
465 m² (5,000 ft²)
Max. Client Count
1000+
Uplink
10 GbE
1 GbE
Mounting
Wall, Pole (Mounts Included), VESA (Optional)
Weatherproofing
IPX6
IP67 with Waterproof Door Kit (Included)
Power Method
PoE++

Performance
MIMO
6 GHz
4 x 4 (DL/UL MU-MIMO)
5 GHz
4 x 4 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
6 GHz
11.5 Gbps (BW320)
5 GHz
8.6 Gbps (BW240)
2.4 GHz
688 Mbps (BW40
Antenna Gain
6 GHz
Directional internal: 12 dBi, 90° x 50°
5 GHz
Directional internal: 12 dBi, 100° x 55°
2.4 GHz
Directional internal: 9 dBi, 90° x 80°
Max. TX Power
6 GHz
30 dBm
(36 dBm EIRP)
5 GHz
30 dBm
2.4 GHz
23 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 11.4 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320)
802.11ax (WiFi 6)
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11n
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

Features
Wireless Meshing

Band Steering

802.11v BSS Transition Management

802.11r Fast Roaming

802.11k Radio Resource Management (RRM)

Zero-Wait DFS

Advanced Radio Management

Real-Time Spectral Analysis

Passpoint (Hotspot 2.0)

Captive Hotspot Portal
Custom Branding Landing Page

Voucher Authentication

Payment-Based Authentication

External Portal Server Support

Password Authentication

Guest Network Isolation

Private Pre-Shared Key (PPSK)

WiFi Speed Limiting

Client Device Isolation

WiFi Schedules

RADIUS over TLS (RadSec)

Dynamic RADIUS-assigned VLAN

Hardware
Max. Power Consumption
44W
Supported Voltage Range
42.5—57V DC
Networking Interface
(1) 10 GbE RJ45 port
(1) 1 GbE RJ45 port
PRISM™ RF Filtering

Weight
Device: 2.2 kg (4.9 lb)
With articulating mount: 3.1 kg (6.8 lb)
Wind Loading
164.75 N at 200 km/h (37 lbf at 125 mph)
Pole Mount Diameter
1–2.5" (25–63.5 mm)
Antennas
(1) Internal with directional patterns
Antenna beamwidth
6 GHz
90° x 50°
5 GHz
100° x 55°
2.4 GHz
90° x 80°
Management
Ethernet
Enclosure Material
UV-stabilized polycarbonate, aluminum alloy
Mount Material
Stainless steel, aluminum alloy
LEDs
System
R/G/B
NDAA Compliant

Certifications
FCC, IC
Operating Frequency
US/CA:
2400 - 2472 MHz
U-NII-1: 5150 - 5250 MHz
U-NII-2A: 5250 - 5350 MHz
U-NII-2C: 5470 - 5725 MHz
U-NII-3: 5725 - 5850 MHz
U-NII-5 and U-NII-7: 5925 - 6425 MHz, 6525 - 6875 MHz

Worldwide:
2400 - 2483.5 MHz
5150 - 5725 MHz
5925 - 7125 MHz
Ambient Operating Temperature
-30 to 60° C (-22 to 140° F)
Ambient Operating Humidity
5 to 95% noncondensing

Software
Application Requirements
UniFi Network
Version 9.0.114 and later
Mobile App
iOS™ version 10.20.0 and later
Android™ version 10.21.3 and later
