Description

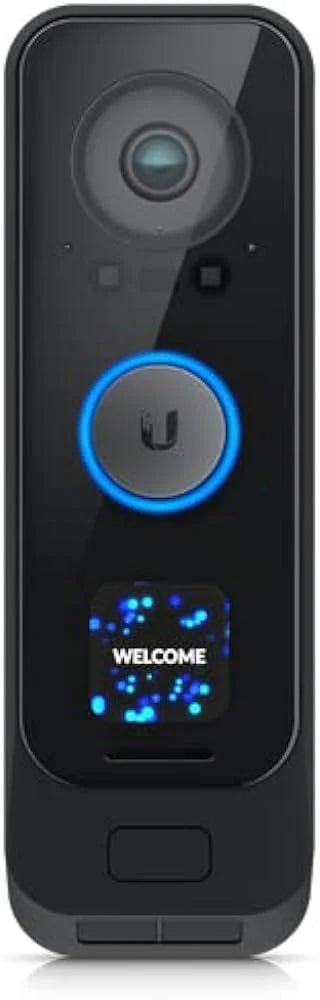

Your premium UniFi doorbell with an enhanced package detection camera and integrated display.
Improved HDR and low-light performance
Programmable welcome display and secondary package-detection camera
6 m (20 ft) IR night vision
AI event detections
Wirelessly connected*
Integrated 2-way audio
Weather-resistant (outdoor covered)
*Auto-connect to UniFi WiFi.
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 160.6 x 51.7 x 28.7 mm (6.3 x 2 x 1.1") |
| Weight | Without mount: 253 g (8.92 oz) With flat wall mount: 286 g (10.08 oz) With 20° wedge mount: 325 g (11.46 oz) |
| Enclosure materials | Polycarbonate, aluminum alloy |
| Mount materials | Flat wall mount: aluminum alloy 20° wedge mount: polycarbonate |
| Weatherproofing | IPX4 |
| Optics | |
| Sensor | Main camera: 5MP CMOS sensor Package camera: 8MP CMOS sensor |
| Lens | Fixed focal length |
| View angle | Main camera: H: 138°, V: 114°, D: 155° Package camera: H: 97.5°, V: 79.4°, D: 118.2° |
| Night mode | Built-in IR LED illumination and IR cut filter |
| Video | |
| Video compression | H.264 |
| Resolution | Main camera: 2MP 1600 x 1200 (4:3) Package camera: 2MP 1600 x 1200 (4:3) |
| Max. frame rate | 30 FPS |
| System | |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Networking interface | 802.11a/b/g/n/ac WiFi Bluetooth 5.0 GbE support (with UACC-Adapter-DBPOE) |
| Max. power consumption | 10W |
| Power requirements | 16—24V AC, 1.25A max., 50/60 Hz USB-C power cable, 5V DC, 2A |
| Supported voltage range | 37—57V DC |
| LED | Link/activity |
| Button | (1) Ring button (1) Factory reset |
| Mounting | Flat wall, 20° wedge (Included) |
| Operating temperature | -10 to 40º C (14 to 104º F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Audio | |
| Microphone | Yes (Can be disabled in software) |
| Speaker | Yes |
| Software | |
| Web application | UniFi Protect: Version 1.21.0 and later |
| Mobile app | UniFi Protect iOS™: Version 1.5.8 and later UniFi Protect Android™: Version 1.4.8 and later |
| Compatible Mechanical Chimes | |
|
Manufacturer Broan-NuTone Broan-NuTone Heath Zenith Craftmade Broan-NuTone Newhouse Hardware |
Model LA126WH LA11WH SL-2735 CTPW-RG LA39WH CHM3D |
| Compatible Digital Chimes | |
|
Manufacturer Broan-NuTone IQ AMERICA IQ AMERICA |
Model LA600WH DW-2850 DW-2840 |
