Description

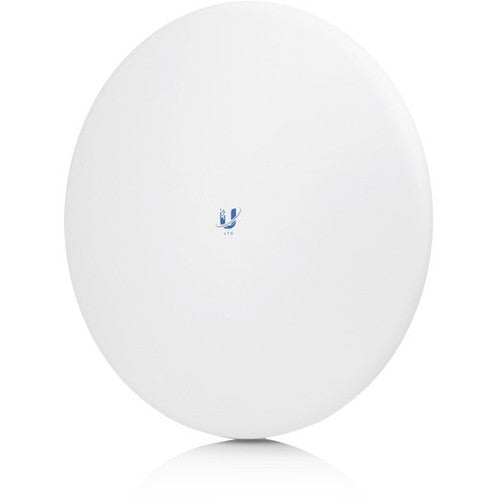

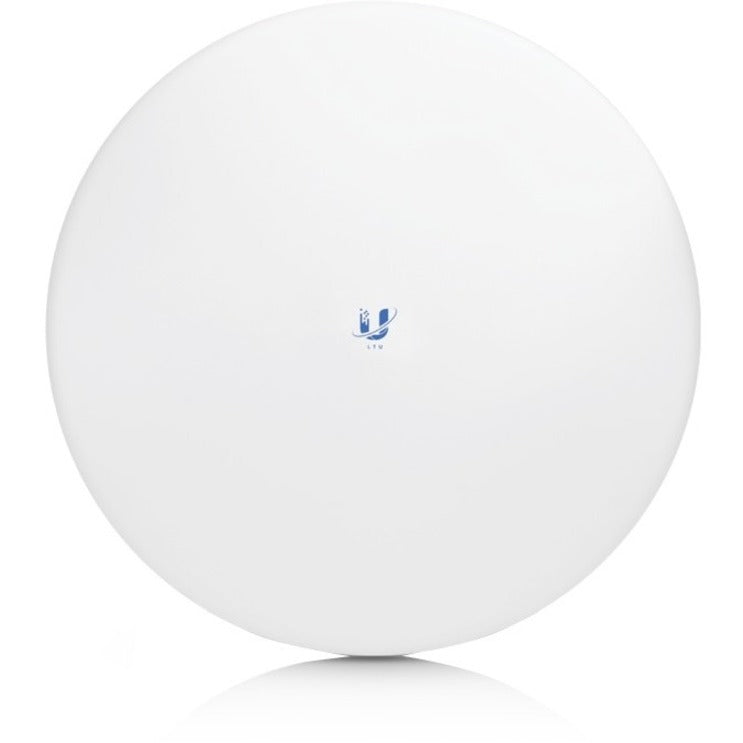

Featuring an integrated 24 dBi dish antenna, the LTU Pro is a 5 GHz subscriber station that functions as a CPE (Customer Premises Equipment) in a Point-to-MultiPoint (PtMP) environment with the LTU Rocket® as the basestation.
Proprietary LTU Technology
Based on Ubiquiti's LTU technology, the LTU Pro is not impeded by the limitations of standard 802.11 Wi-Fi technology. Its custom LTU silicon and radio architecture provide up to 600+ Mbps of real TCP/IP throughput and modulation rates of up to 4096QAM.
CPE Modes
The LTU Pro supports both bridged and built-in hardware NAT router modes to suit your specific deployment.
Frequency Split
The LTU Pro can use different frequencies for TX and RX to avoid interference.
Robust Pole Mount Design.

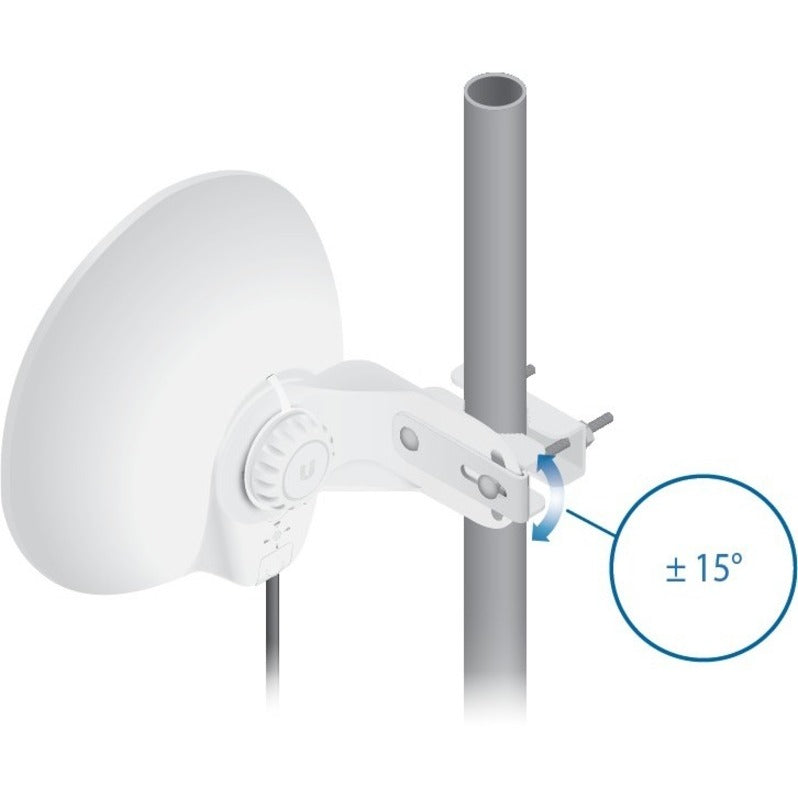

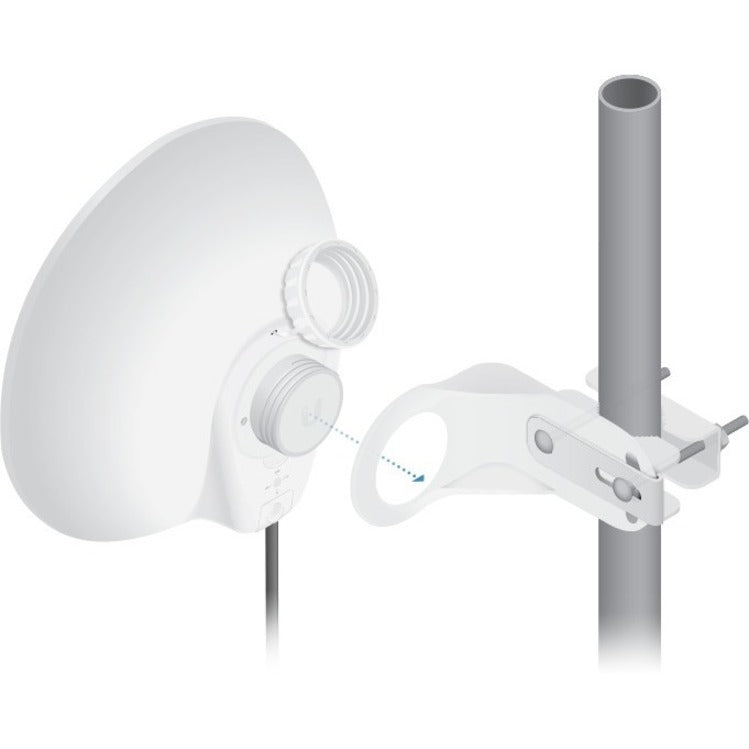

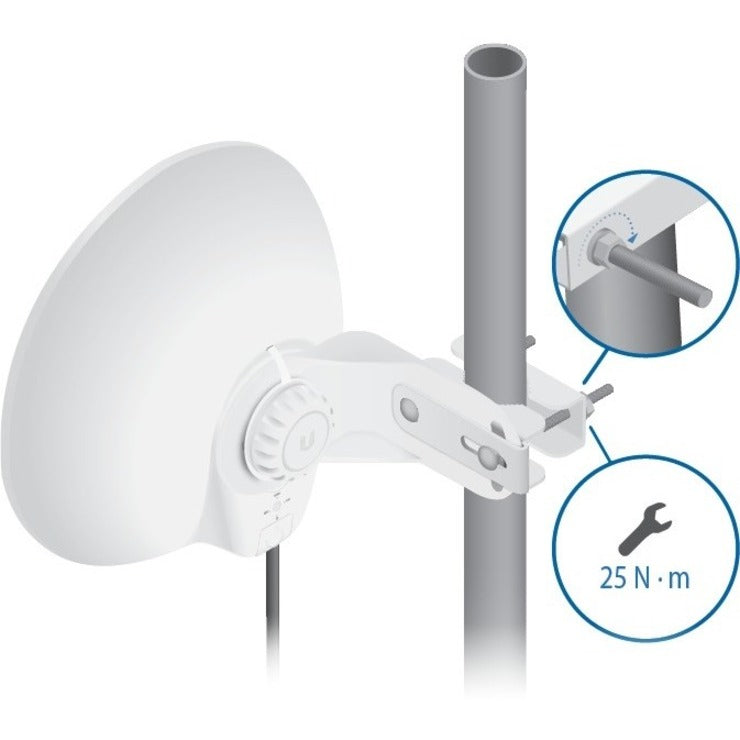

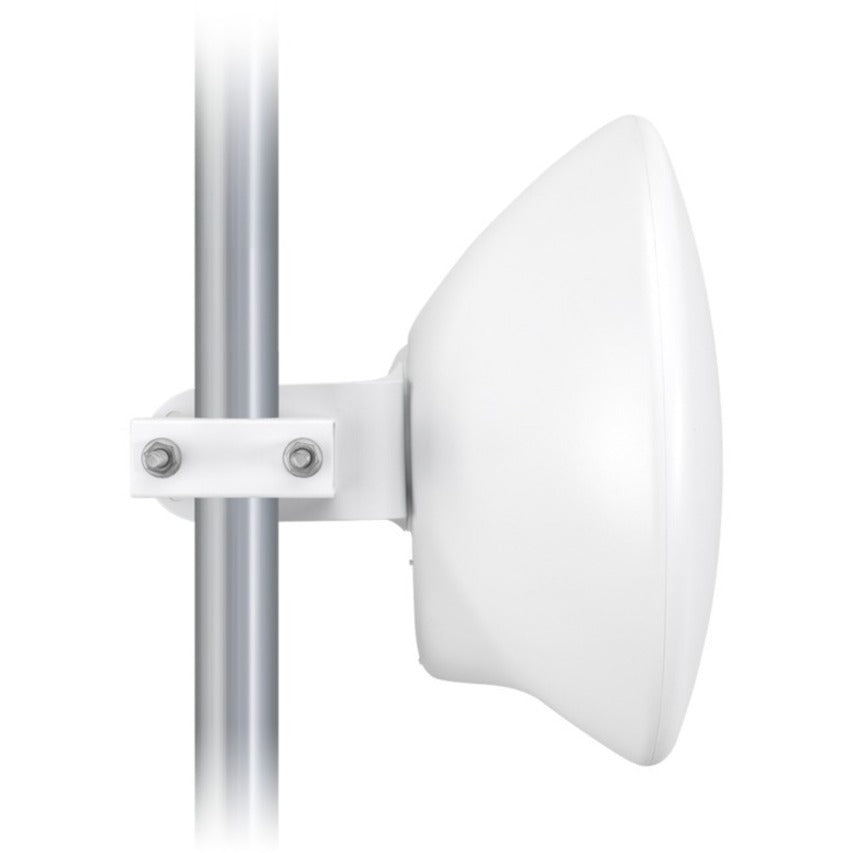

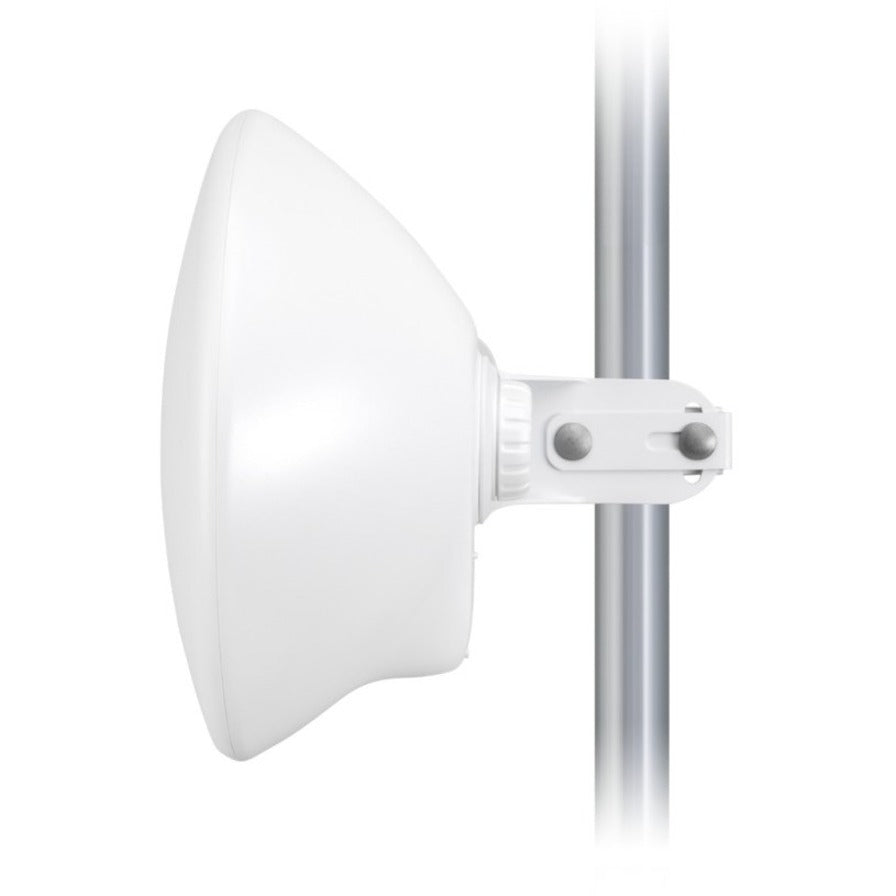

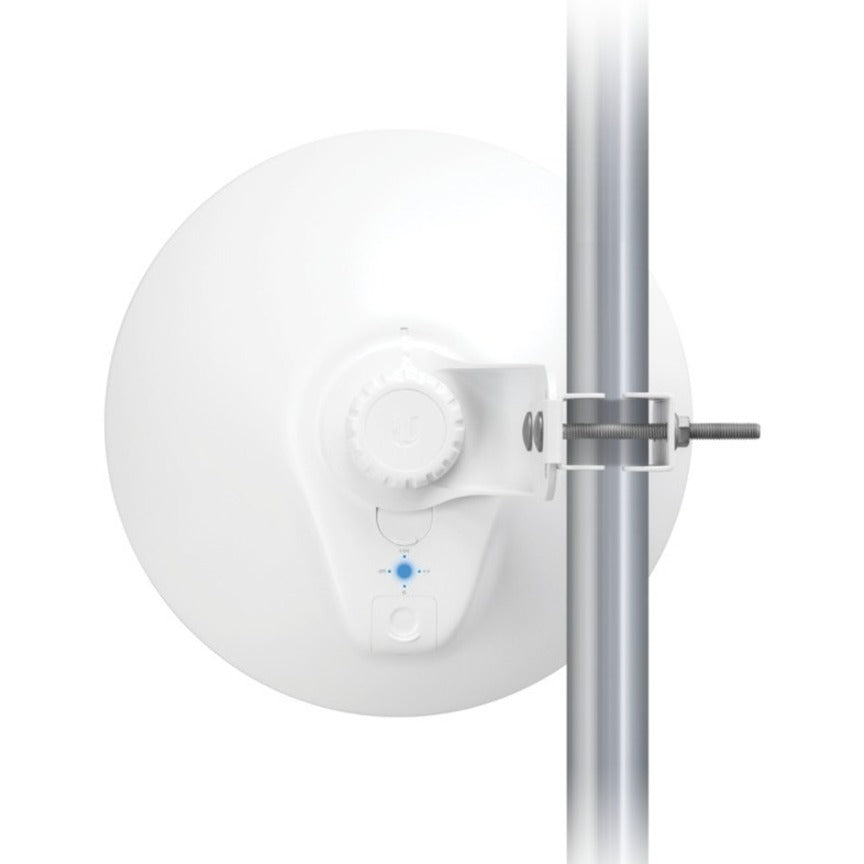

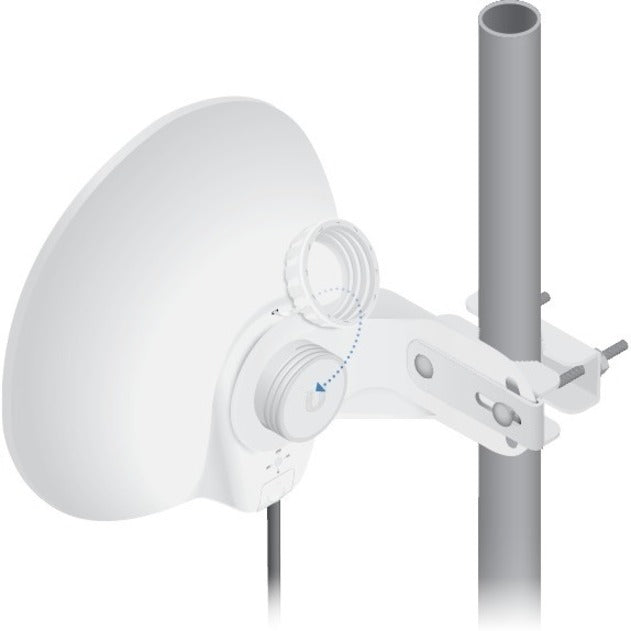

The LTU Pro is designed for quick yet reliable mounting on a pole. It features a built-in mechanical tilt; the mounting bracket allows convenient adjustments to the elevation with a range of ± 15°.
Channel Width Flexibility
Channel width flexibility allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference. Channel width options include the following:
- 10 MHz
- 20 MHz
- 30 MHz
- 40 MHz
- 50 MHz
- Up to 100 MHz
By default, the Auto Output Power option allows the LTU Pro to set the output power (EIRP) to the appropriate level.
Signal Control
The LTU Pro's TX output power is controlled by the AP's target TX output power. A PtMP network can manage signal levels to enhance network stability and achieve optimal wireless performance with the highest possible modulation.
Convenient Configuration
To manage the LTU Pro, you have two options: the LTU Configuration Interface and Ubiquiti Network Management System (UNMS™). Either option lets you manually configure the LTU Pro.
Within the LTU Configuration Interface, you can manually configure the LTU Pro or manage it from the AP side using the Find My AP feature. The LTU Pro will automatically scan for APs using the same channel bandwidth. Select the appropriate AP and then use it to configure the LTU Pro.
Integrated GPS
Built-in GPS improves synchronization and allows map and Fresnel views on the Dashboard.
- Provide your business with a wireless solution that ensures a speedy and steady data transfer rate
- Up to 10x faster than standard Ethernet connectivity for your wired network
- PoE PD Port : Yes
- Form Factor : Pole-mountable
- Wireless Transmission Speed : 600 Mbit/s
- Manufacturer : Ubiquiti Networks, Inc
- Number of Internal Antennas : 2
- Product Type : Wireless Access Point
- Ethernet Technology : Gigabit Ethernet
- Frequency Band : 5 GHz
- Product Model : LTU-Pro
- Number of Network (RJ-45) Ports : 1
- Product Line : LTU Pro
- Manufacturer Website Address : http://www.ubnt.com
- Form Factor : Pole-mountable
- PoE PD Port : Yes
- Wireless Transmission Speed : 600 Mbit/s
- Number of Internal Antennas : 2
- Frequency Band : 5 GHz
- Ethernet Technology : Gigabit Ethernet
- Number of Network (RJ-45) Ports : 1
- Manufacturer : Ubiquiti Networks, Inc
- Product Type : Wireless Access Point
- Product Model : LTU-Pro
- Product Line : LTU Pro
- Manufacturer Website Address : http://www.ubnt.com
