Description

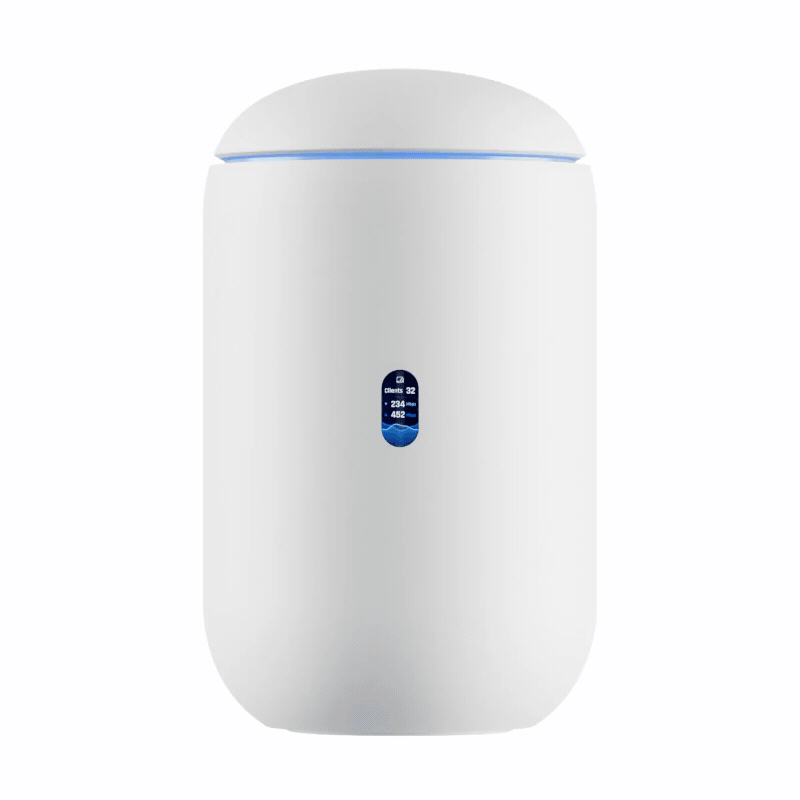

Introducing the Ubiquiti UniFi Dream Router 7, the ultimate solution for seamless connectivity. With advanced Dream Router 7 technology, enjoy lightning-fast speeds and reliable signal strength, achieving up to 80% more coverage. Upgrade to an unparalleled internet experience.
Desktop 10G Cloud Gateway with integrated WiFi 7, PoE switch, microSD storage, and full UniFi application support.
|
Processor |
Quad-Core ARM Cortex-A53, 1.5GHz |
|
Memory
USB flash drive
|
3GB DDR4 |
|
Storage |
SD Card Slot (64GB WD Purple SD Card pre-installed) |
|
WiFi Standard |
WiFi 7 (802.11a/b/g/n/ac/ax/be) |
|
MIMO Configuration |
2×2(2.4GHz, 5GHz, 6GHz) |
|
Maximum Throughput |
2.4GHz: 688Mbps 5GHz: 4.3Gbps 6GHz: 5.7Gbps |
|
LAN Ports |
3x 2.5GbE (Port 1 PoE) |
|
WAN Ports |
1x 2.5GbE WAN/LAN 1x 10GbE SFP+ WAN/LAN |
|
Security Features |
– Signature-based IPS/IDS – Application-aware firewall – Content, domain, ad, and country filtering |
|
QoS |
– WiFi QoS with UniFi APs – Application, domain, and country-based QoS |
|
VPN Support |
– WireGuard, L2TP, OpenVPN Server – OpenVPN client – IPsec and OpenVPN site-to-site – One-click Teleport and Identity VPN |
|
Firewall |
Full stateful firewall with advanced rules |
|
Segmentation |
VLAN and subnet-based traffic segmentation |
|
Internet Failover |
LTE backup support |
|
DHCP Features |
DHCP relay and customizable DHCP server |
|
IPv6 Support |
Yes |
|
IGMP Proxy |
Supported |
|
Bluetooth |
For setup |
|
LCD/LCM Screen |
Integrated |
|
Physical Dimensions |
110 x 110 x 184.1 mm |
|
Weight |
1.1kg |
|
Encryption Standards |
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
|
Max SSIDs |
8 per radio frequency/channel |
|
Other Capabilities |
– License-free SD-WAN – Application and device identification – Internet quality and outage reporting |
