Description
2U UniFi Protect NVR with built-in AI event analytics, HDMI output, eight 2.5”/3.5” HDD bays, and support for up to (50) 4K or (100) Full HD cameras.

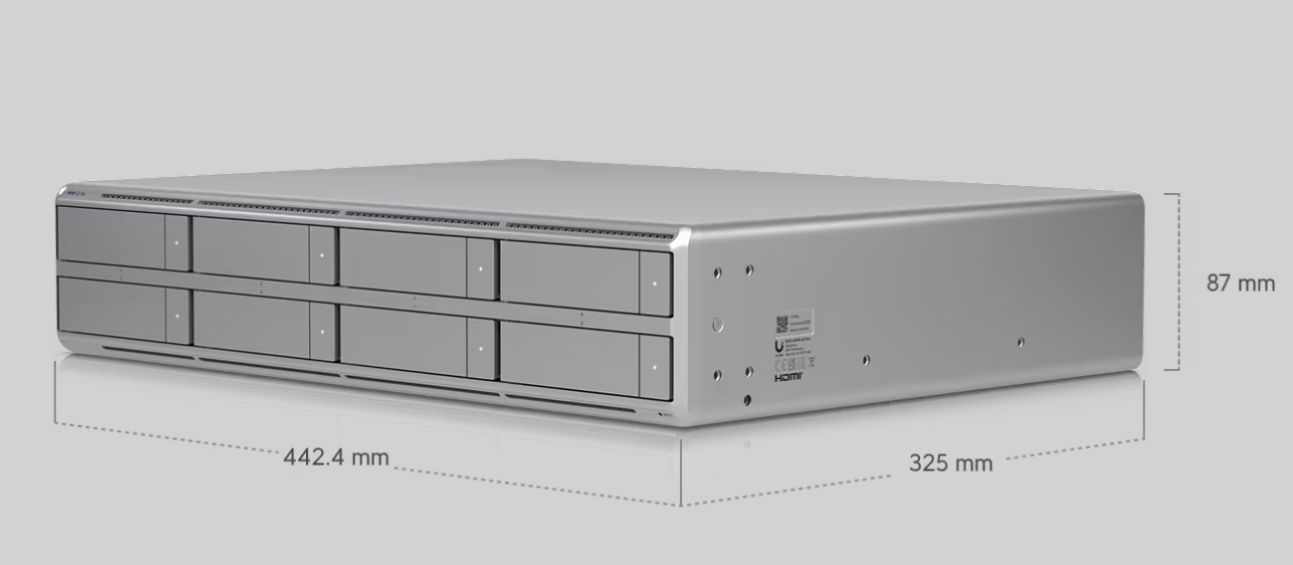

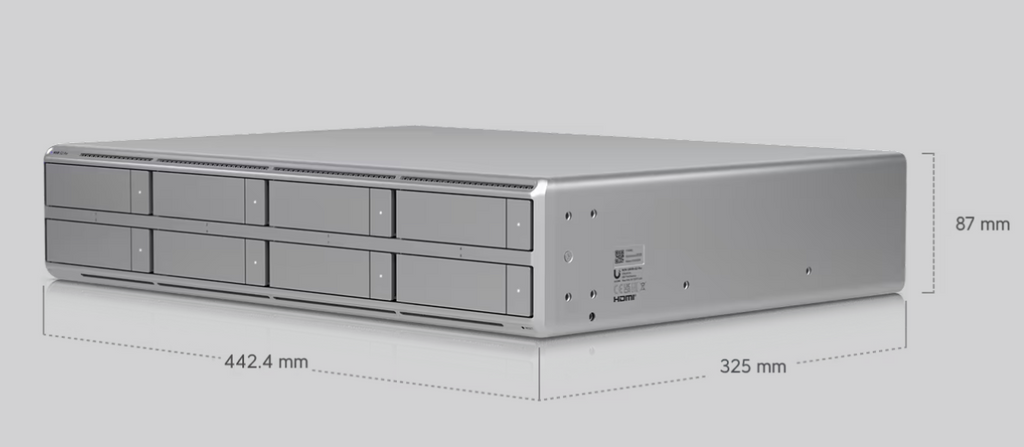

Dimensions: 442.4 x 87.4 x 325 mm (17.4 x 3.4 x 12.8")
Managed Cameras: (100) HD (70) 2K (50) 4K
Max. Simultaneous Viewport Streams: 16 4K cameras
Managed Access Hubs: 150+

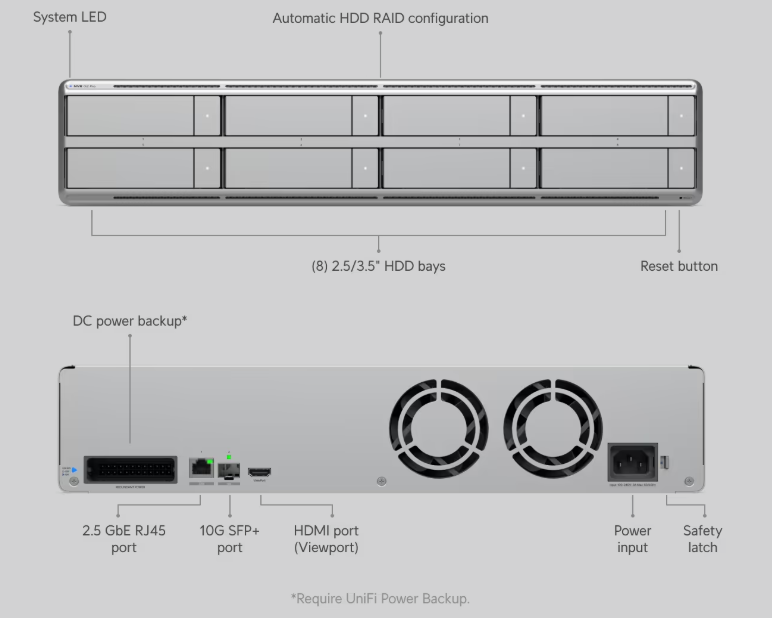

Storage Capacity: (8) 2.5/3.5" drive bays
Data Protection ✓
Networking Interface: (1) 10G SFP+ port (1) 2.5 GbE RJ45 port
Power Redundancy ✓
Form Factor: Rack Mount (2U)
Door Access Support ✓
Management Application: UniFi Protect UniFi Access UniFi Connect
Hard Drive Capacity: (8) 2.5/3.5" HDD / SSD support
Max. Power Budget for Drives: 155W
Max. Power Consumption: 200W
Power Method: (1) Universal AC input, 100–240V AC, 3A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC
Power Supply: AC/DC, Internal PSU, 200W
Processor: Qualcomm® Kryo™ CPU built on Arm® Cortex® technology (4 nm) (1) Prime core (3.2 GHz) (4) Performance cores (2.8 GHz) (3) Efficiency cores (2.0 GHz)
Memory: 16 GB
Management: Ethernet Bluetooth
Weight: 8.4 kg (18.5 lb)
Enclosure Material: SGCC steel
Mount Material: SGCC steel
- LEDs
Ethernet ✓
Ethernet ✓
SFP+ ✓
RPS ✓
HDD ✓
System✓
Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
Ambient Operating Humidity: 5 to 95% noncondensing
NDAA Compliant ✓
Certifications: CE, FCC, IC
- Application Requirements
UniFi Protect: Version 7.1.55 or later.
UniFi Access: Version 4.2.16 or later.
