Description

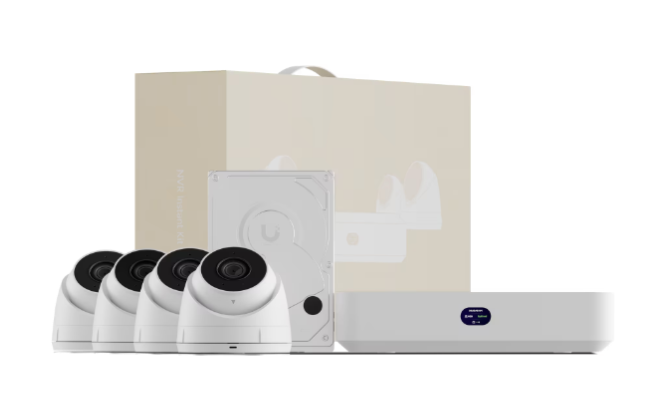

Compact UniFi Protect NVR Kit, includes (1) UniFi Protect NVR Instant with (4) G5 Turret Ultra cameras and (1) 1TB HDD, delivering an all-in-one solution for fast and effortless setup.
Dimensions: 220 x 220 x 47 mm (8.7 x 8.7 x 1.9")
Managed Cameras: (15) HD (8) 2K (6) 4K
Max. Simultaneous Viewport Streams: 6 4K cameras
Managed Access Hubs: 50

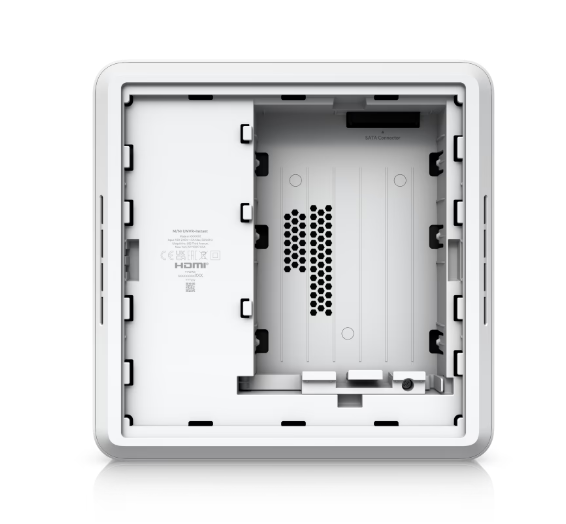

Storage Capacity: (1) 3.5" drive bay
Data Protection: ✓
Vantage Point: ✓

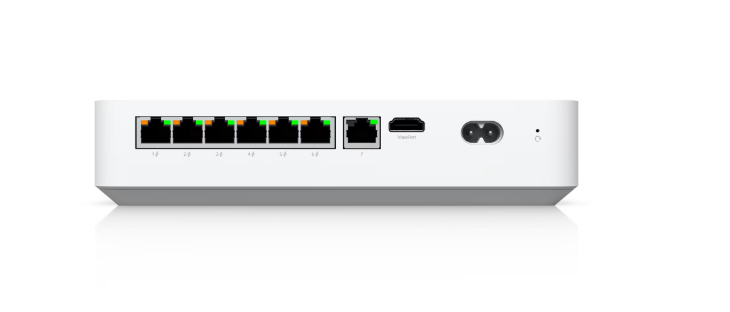

Networking Interface: (1) GbE RJ45 uplink port (6) GbE PoE RJ45 downlink ports (1) HDMI port (Viewport)
Form Factor: Compact Desktop
Mounting: Wall, Din rail mount (Included)
Door Access Support: ✓
Management Application: UniFi Protect UniFi Access UniFi Connect
Hard Drive Capacity: (1) 3.5" HDD support
Max. Power Budget for Drives: 11W
Max. Power Consumption: 9W
Power Method: Universal AC input, 100–240V AC, 1.5A Max, 50/60 Hz
Power Supply: AC/DC, Internal, 60W
PoE Budget: 40W
- Max. PoE Wattage per Port by PSE
PoE: 15.4W
Voltage Range PoE Mode: 44–57V
Processor: Quad-core ARM® Cortex®-A55 at 1.7 GHz
Memory: 4 GB
Management: Ethernet Bluetooth
Display: 1.14" screen
Weight: 1.04 kg (2.3 lb)
Enclosure Materials: Polycarbonate
Mount Material: Polycarbonate
- LEDs
Ethernet ✓
PoE ✓
Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
Ambient Operating Humidity: 5 to 95% noncondensing
NDAA Compliant: ✓
Certifications: FCC, IC, CE, Electrical Safety

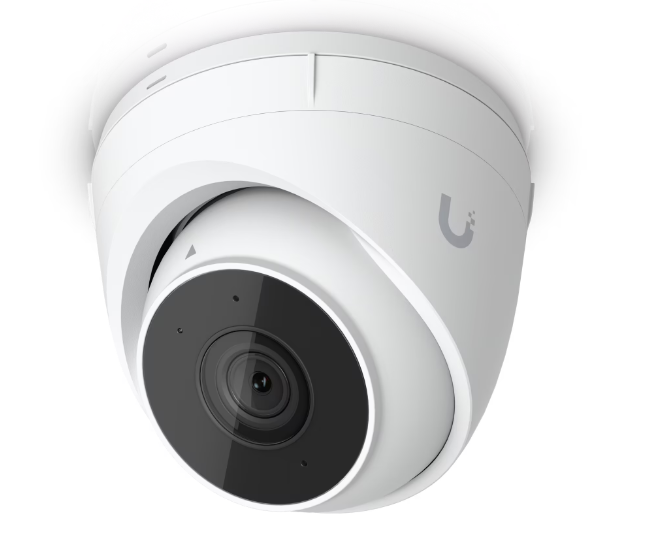

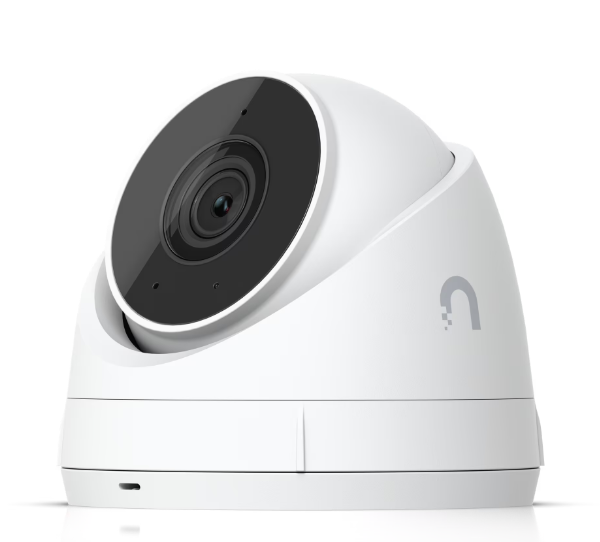

Dimensions: ⌀90 x 71.2 mm (⌀3.5 x 2.8")
IR Night Vision: 30 m (98 ft)
Smart Detections (People, Vehicles, Animals): ✓
Resolution: 2K
Field of View: H: 102.4°, V: 54.9°, D: 120.6°
Audio: Microphone
Weatherproofing: IP66
Tamper Resistance: IK04
Mounting: Wall, ceiling mount (Included) Junction box, arm mount (Optional)
Networking Interface: 10/100 MbE RJ45 port
- Video
Image Settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
Max. Frame Rate: 30 FPS
Resolution: 4MP 2688 x 1512 (16:9)
- Optics
Sensor: 1/2.4" CMOS
Lens: Fixed focal length
Night Mode: Built-in IR LED illumination and IR cut filter
Max. Power Consumption: 4W
Supported Voltage Range: 37—57V DC
Power Method: PoE
Processor: Dual-core Arm® Cortex®-A7 based chip
Weight: 330 g (11.6 oz)
Enclosure Material: Aluminum alloy, UV-stabilized polycarbonate
Mount Material: Polycarbonate
Button: (1) Factory reset
- Cable
Cable Connector Type: RJ45
Cable Diameter: 5 mm (0.2")
Cable Length: 30 cm (1 ft)
Jacket Material: Polycarbonate
Jacket Enclosure Dimensions: ⌀20 x 70.6 mm (0.8 x 2.8")
Jacket Enclosure Material: Thermoplastic elastomer, polycarbonate, silicone rubber
Ambient Operating Temperature: -30 to 50° C (-22 to 122° F)
Ambient Operating Humidity: 0 to 90% noncondensing
NDAA Compliant: ✓
Certifications: CE, FCC, IC

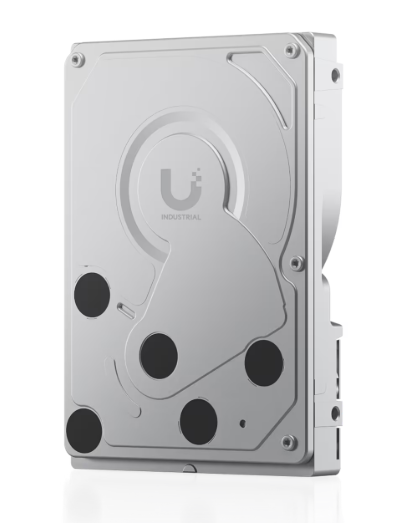

Dimensions: 147 x 101.6 x 26.1 mm (5.75 x 4 x 1")
Hard Disk Form Factor: 3.5-inch
Weight: 0.45 kg (0.99 lb)
Storage Capacity: 1 TB
Power Method: 5V/12V input
Management Interface: SATA 6 Gb/s
Rotation Speed: 5400 RPM
Workload Rating: 180 TB/year
Mean Time Between Failure (MTBF): 1,000,000 h
Ambient Operating Temperature: 0 to 65° C (32 to 149° F)
Ambient Operating Humidity: 5 to 95% noncondensing
NDAA Compliant ✓
Certifications: FCC, CE, TUV, RCM, KC, BSMI
