Description

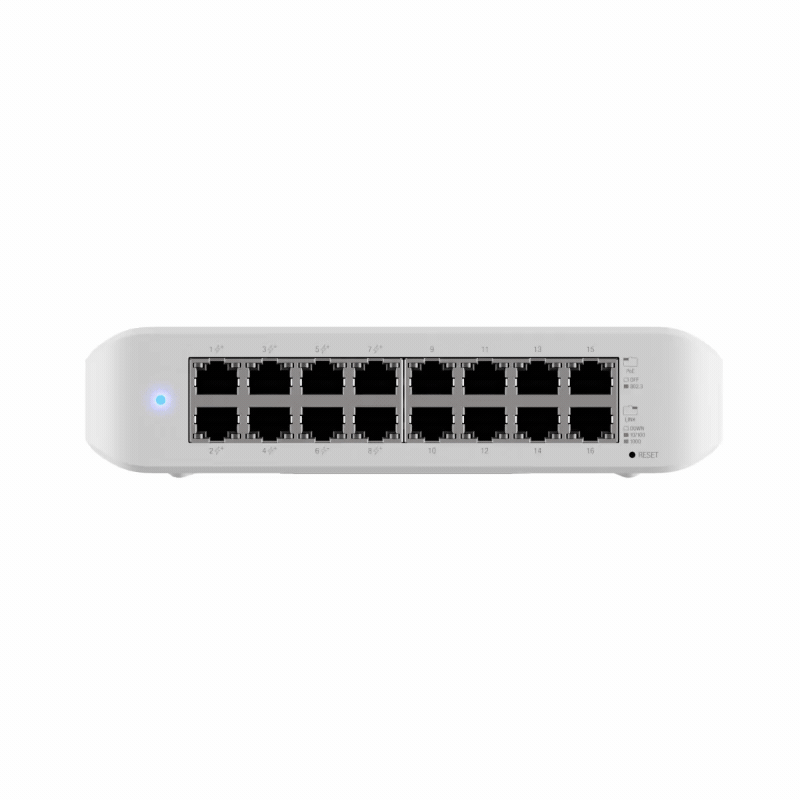

A wall-mountable*, 16-port, Layer 2 PoE switch with a fanless cooling system.
Features:
- (8) GbE, PoE+ RJ45 ports
- (8) GbE RJ45 ports
- 45W total PoE availability
Managed with the UniFi Network application: Version 7.2.94 and later
*Kit included.
- Works with the UniFi Network Application
- Centrally manage multiple networks from an intuitive interface
- Enjoy real-time device insights and deep configuration options
- Upgrade device firmware remotely
- Manage network users and guests with ease
- Personalize the design, architecture, and privacy of guest hotspots
- Set up devices quickly and manage them on the go with a powerful mobile app
| Mechanical | |
|---|---|
| Dimensions | 191.7 x 185 x 43.7 mm (7.55 x 7.28 x 1.72") |
| Weight | 1.2 kg (2.65 lb) |
| Hardware | |
| Total non-blocking line rate | 16 Gbps |
| Max. power consumption | 15W |
| Power method | Universal AC input: 100—240V AC |
| Power supply | Internal 60W AC/DC power supply |
| Networking interface | (16) 10/100/1000 MbE RJ45 |
| PoE interface | (8) PoE/PoE+ (Pins 1, 2+; 3, 6-) |
| Management interface | Ethernet In-Band |
| Max PoE+ wattage per port by PSE | 30W |
| PoE budget | 45W |
| Modes | SMB Layer 2 PoE GbE switch |
| Operating temperature | -15 to 40° C (5 to 104° F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| LED | |
| System | (1) Power: blue/white Flashing white: bootup in progress Flashing blue: firmware upgrading Steady white: factory defaults, awaiting adoption Steady blue: device is adopted |
| Ethernet | Green: 1G Amber: 10/100 Mbps |
| PoE | Amber: PoE/PoE+ |
