Description

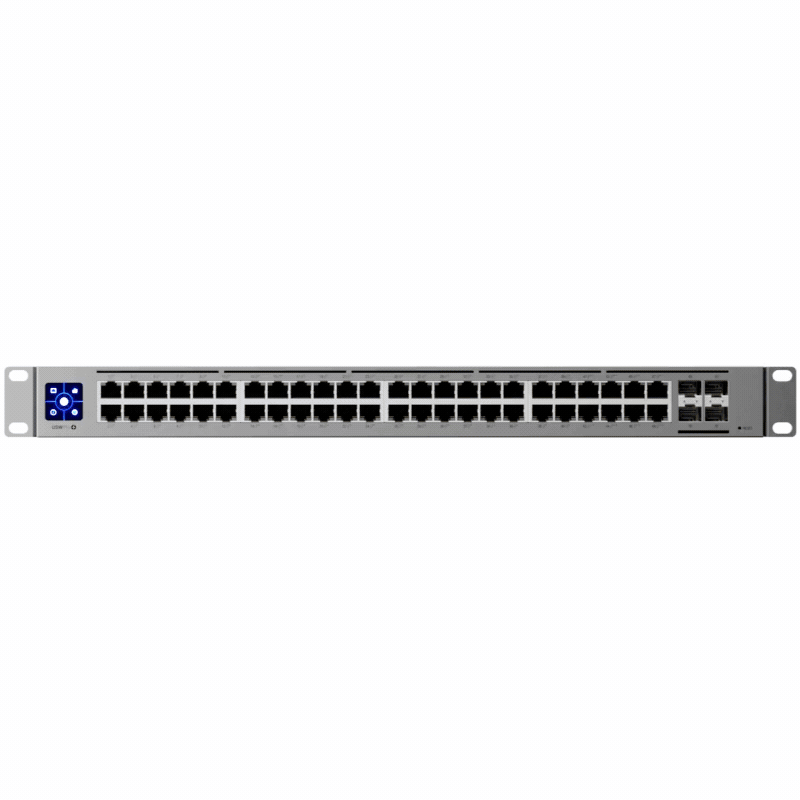

Expand and power your network with the UniFi® Pro PoE Switch, part of the Ubiquiti® UniFi Enterprise System. It is available in two models:
- USW-Pro-24-PoE 24 RJ45 ports with 2 SFP+ ports
- USW-Pro-48-PoE 48 RJ45 ports with 4 SFP+ ports
In addition to Layer 2 switching protocols and features, the UniFi Pro PoE Switch offers Layer 3 capabilities, such as inter-VLAN routing, static routing, and DHCP server functionality.
Near-Silent Cooling
The UniFi Pro PoE Switch can be located in any workspace. Its integrated fans have built-in PWM (Power Management) control, air ducts and covers, and temperature sensors for the best user experience.
Fiber Connectivity
SFP+ ports enable high-capacity uplinks of up to 10 Gbps, so you can directly connect to a high-performance storage server or deploy a long-distance uplink to another switch.
802.3bt PoE++
PoE support simplifies your network infrastructure and cabling. Eight ports offer 802.3bt PoE++ to provide up to 64W of power (per port) to your high-power PoE devices. Remaining ports offer 802.3af/at PoE.
Redundant Power Option
The UniFi Pro PoE Switch supports an external DC input interface, the proprietary USP RPS interface, as a redundant power feature for backup if the internal PSU fails.
- Auto-Sensing IEEE 802.3af/at/bt PoE
- SFP+ Ports for 10G Links
- Integrated Fans for Near-Silent Cooling
- Power Source : Power Supply
- Package Contents :
- USW-PRO-48-POE Layer 3 Switch
- Rack Mount Hardware
- Expansion Slot Type : SFP+
- Manufacturer Website Address : http://www.ubnt.com
- Compatible Rack Unit : 1U
- Modular : Yes
- Total Number of Network Ports : 48
- Manageable : Yes
- Layer Supported : 3
- Environmentally Friendly : Yes
- Port/Expansion Slot Details : 4 x 10 Gigabit Ethernet Uplink
- Number of Total Expansion Slots : 4
- Uplink Port : Yes
- Network Technology : 10GBase-X
- Media Type Supported : Twisted Pair
- Environmental Certification : WEEE
- Redundant Power Supply Supported : Yes
- Number of SFP+ Slots : 4
- Form Factor : Rack-mountable
- Manufacturer : Ubiquiti Networks, Inc
- Product Type : Layer 3 Switch
- Limited Warranty : 1 Year
- Ethernet Technology : 10 Gigabit Ethernet
- Product Model : USW-PRO-48-POE
- Manufacturer : Ubiquiti Networks, Inc
- Package Contents :
- USW-PRO-48-POE Layer 3 Switch
- Rack Mount Hardware
- Manufacturer Website Address : http://www.ubnt.com
- Port/Expansion Slot Details : 4 x 10 Gigabit Ethernet Uplink
- Network Technology : 10GBase-X
- Media Type Supported : Twisted Pair
- Ethernet Technology : 10 Gigabit Ethernet
- Compatible Rack Unit : 1U
- Environmentally Friendly : Yes
- Environmental Certification : WEEE
- Form Factor : Rack-mountable
- Product Type : Layer 3 Switch
- Limited Warranty : 1 Year
- Product Model : USW-PRO-48-POE
- Power Source : Power Supply
- Expansion Slot Type : SFP+
- Total Number of Network Ports : 48
- Modular : Yes
- Manageable : Yes
- Layer Supported : 3
- Number of Total Expansion Slots : 4
- Uplink Port : Yes
- Number of SFP+ Slots : 4
- Redundant Power Supply Supported : Yes
