Description

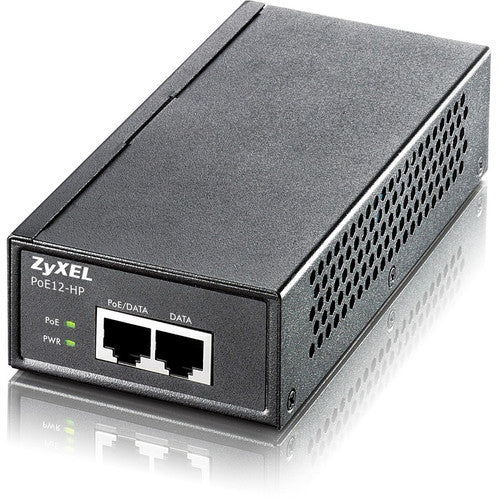

The ZyXEL PoE12 Series is a PoE injector designed to support the increasing power of the latest-generation N wireless Access Points (APs) as well as the pan, tilt or zoom functions of IP surveillance cameras. The PoE12 Series consists of two models: PoE-12 PoE12-HP. The PoE-12 and PoE12-HP are single-port PoE injectors that deliver both and data to other PoE devices via a single CAT-5 Ethernet cable without extra power. The PoE-12 enables 100 Mbps data transmissions and provides power up to 15.4 W, the PoE12-HP allows data transmitted at 1000 Mbps and delivers power up to 30 W.
- Install anywhere taking advantage of PoE technology
- Superior safety with overloading and short-circuit protection
- IEEE 802.3af and IEEE 802.3at Power over Ethernet (PoE) standards compliant
- Environmental Certification : RoHS
- Certifications & Standards :
- EN 60950-1
- CSA international
- CC Part15 (Class B)
- CE EMC (Class B)
- FCC
Complaints:
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
- Environmentally Friendly : Yes
- Product Series : PoE12

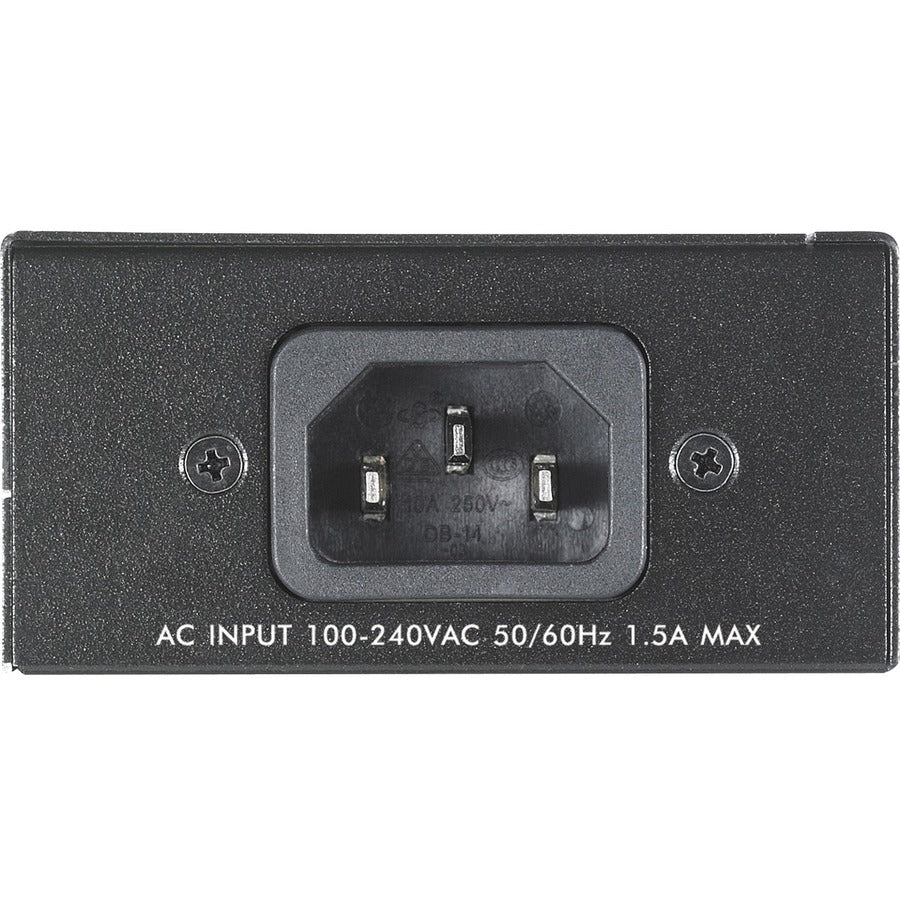

- Input Voltage : 240 V AC
- Limited Warranty : 2 Year
- Output Ports : 1 10/100/1000Base-T
- Manufacturer Website Address : http://www.zyxel.com
- Product Type : PoE Injector
- Input Ports : 1 10/100/1000Base-T
- Length : 5" (127 mm)
- Manufacturer : ZYXEL Communications Corp.
- Maximum Output Power : 30 W
- Product Model : PoE-12HP
- Compatibility :
- WLAN Access Points
- VoIP Phones
- IP Cameras
